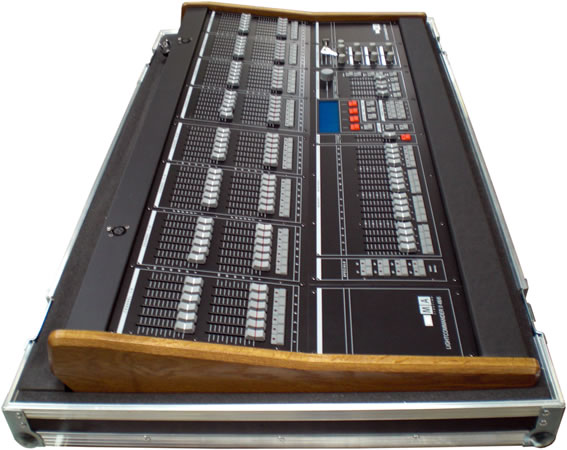

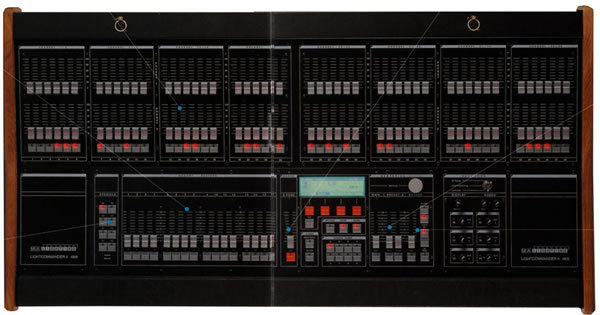

MA LIGHTING - Lightcommander 48/96

Single Channels :
* 24 / 48 channels via faders on 2 pre-sets and flash buttons
* 6 extra channels via pots
* WIDE function for doubling channels to 48 / 96 channels on 1 pre-set
* SWOP disable and dimmer curve selectable per channel
* List of channel values in display
Memories :
* 16 memory faders with flash button
* Flash buttons Add/Swop alternatively
* 8 switch memories in Flash, Toggle or Kill mode
* 192 scenes on 8 pages
* Preview with percent value in display
* Memories control wide channels also in 2 Pre-set mode
Master Functions :
* Master fader for pre-sets and chaser
* Main master with Blackout key
* Graphic display with bright background and brilliant contrast
* Menus with detailed documentation of all steps
* Live and blind programming and modification
* Time in top menu
* Key switch for ‘All Access’, ‘Lock Programming’ and ‘Lock Desk’
Chase Effects :
* Up to 5,000 steps in 50 programmes
* Single steps as ‘On-Off’ effect based on programmed memories or as real level pictures
* Speed selection via encoder wheel, learn speed, sound activated or manual step key
* Chase control with selectable fade time
* 4 chase programmes per bank transferable on memory faders
Dipless X-fade :
* Up to 5,000 steps in 50 programmes
* Manual X-fade or auto fade with pre-programmed times between pre-sets, memories or sequence steps
* Selectable fade time via encoder or fader can be modified even after fade has started
* Separate in- and out-fade time per sequence step
* Graphic display of X-fade status
Inputs and Outputs :
* 30 / 54 analogue outputs 0 to +10 Volt via Socapex EF 337 female
* DMX 512 (1990) with soft patch for 255 dimmer channels
* Graphic display of patch list
* MIDI in – out – thru
* Sound input for chase trigger
Storage and Backup :
* Storage of all programmes internally and optionally on memory card
* Swapping of card contents and board contents
* Programmes interchangeable between 24 and 48 channel board
Miscellaneous :
* Master Slave mode transferring all functions
* Adjustable contrast for display Housing
* Treated steel housing
* Solid wood side panels
* XLR connector for desk lamps
* service friendly modular components
Electronics :
* Motorola 68000 CPU
* Independent operating system
* DMX update rate faster than 30 Hz
Weight and Dimensions : 74 cm x 62 cm x 13,5 cm, 16 kg
