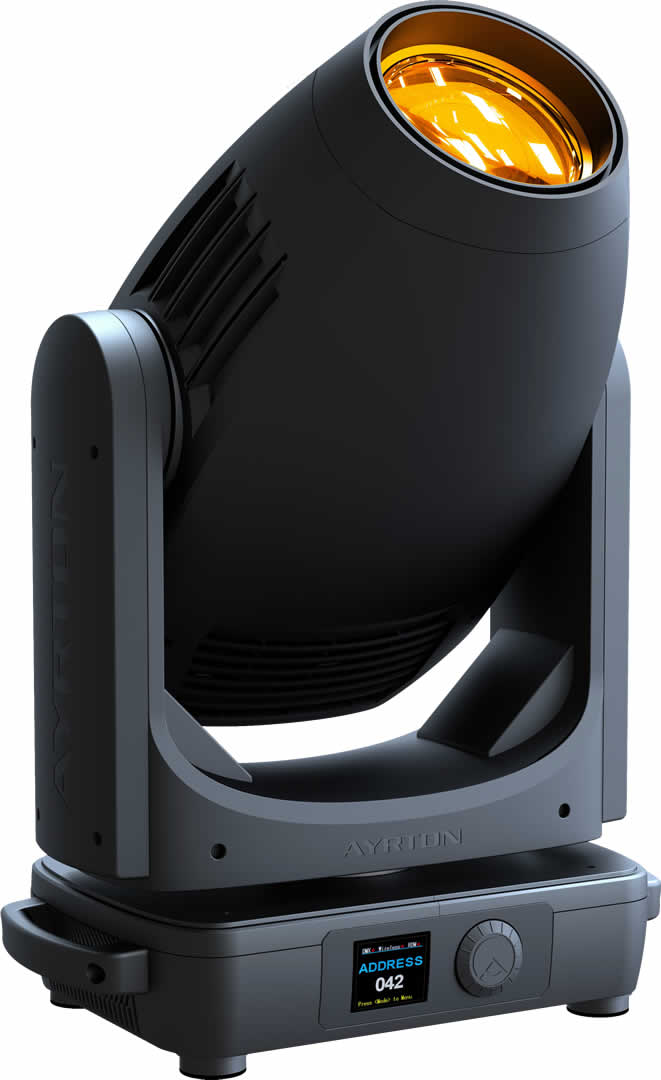

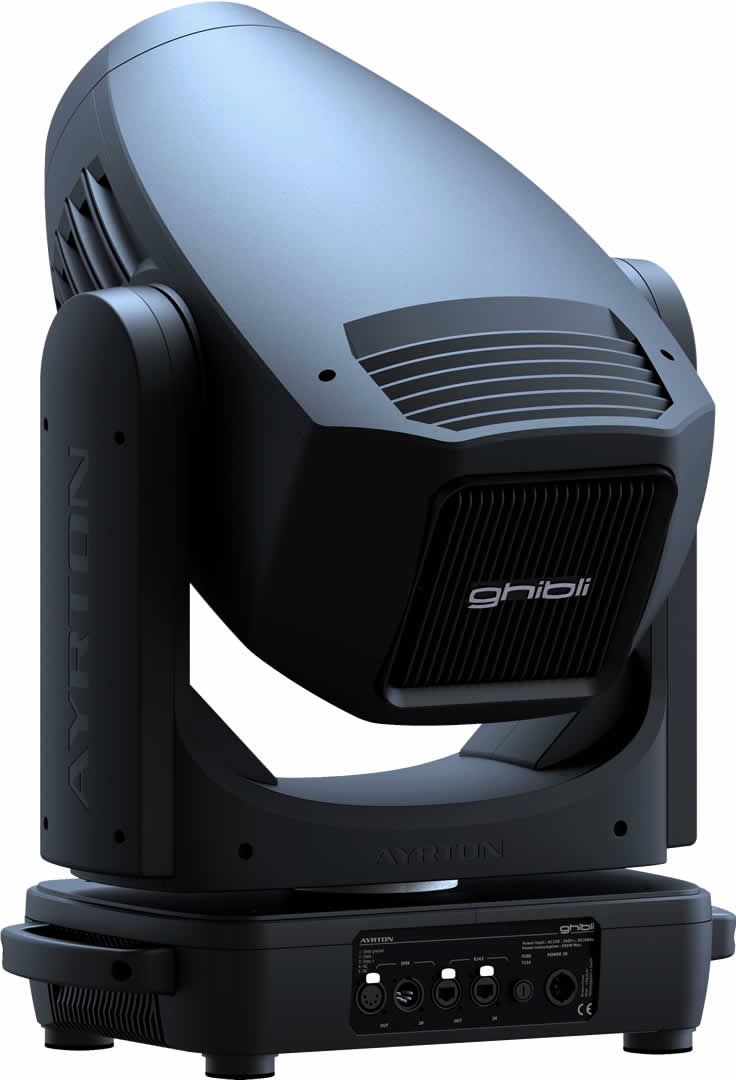

AYRTON - Ghibli

Le premier spot hybride motorisé à leds Ayrton propose un équipement ultra complet avec un faisceau puissant dénué de point chaud.
Son optique à 13 lentilles projette un faisceau homogène, à flux constant de 23 000 lumens quelle que soit la focale de son zoom. Un vrai zoom linéaire d’amplitude extra-large : 7°-56. Il assure toutes les fonctions, à un niveau de qualité très élevé.
Les couteaux traversants permettent de fermer complètement et créer des effets sans limite.

OPTICS

• 13 elements 8:1 zoom high resolution optic system
• Beam aperture: 7° to 56°
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 137 mm front lens for ultimate performance

LIGHT SOURCE

• 30K low-etendue White Light Engine
• Total luminaire output: up to 23,000 lumens
• CRI: up to 90 with High CRI filter
• Rated source life: up to 25,000 hours
• Flicker-free source management, suitable for TV applications and all video recorded events

MOVEMENT

• Extremely accurate positioning
• Moving head operated via either 8 or 16 bit resolution
• High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements
• PAN and TILT automatic repositioning
• Moving head range: 540° (PAN), 280° (TILT)

COLOURS

• Sophisticated colour mix system providing CYM colour mixing
• Variable CTO colour temperature correction
• Fixed colour wheel with High CRI filter and six saturated colour filters

GOBOS

• Indexable rotating gobo wheel with 7 high precision glass gobos plus open position
• Adjustable speed rotating gobo in both directions
• Fixed gobo wheel with 8 high precision glass gobos plus open position
• Gobo Ø: 30.0 mm – Image Ø: 22.0 mm

FRAMING SYSTEM

• 4 individually positionable shutter blades
• Rotation of the framing system module: +/- 60°

IRIS DIAPHRAGM

• Fast iris diaphragm with adjustable dynamic effects
• ris range : 15% to 100% open

EFFECTS

• Graphic animation effect wheel with continuous rotation in both directions
• 5-facet rotating and indexable prism
• 2 frost filters: soft edge & hard edge

DIMMER / STROBE

• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FACILITIES

• Local DMX addressing of the luminaire and its optional parameters through its built-in LCD panel control
• Remote DMX addressing of the luminaire and its optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version

HARDWARE FACILITIES

• Graphic LCD Display for setting address and special functions, with flip function
• Clicking jog wheel to set functions
• Over-heating protection
• XLR 5-pin male/female connectors for DMX connections
• Ethercon RJ45 IN / OUT connectors for ArtNet connections

CONTROL

• DMX 512 protocol, through DMX cable or wireless system
• Stand-alone mode and Master/Slave modes
• DMX-RDM compatible
• Integrated DMX-RDM wireless receiver from LumenRadio™
• Local control panel, with LCD display
• DMX 512 Input / Output through XLR5 connectors
• ArtNet protocol through RJ45 connectors
• Choice of 3 DMX modes (from 34 to 58 DMX channels)

POWER SUPPLY

• Electronic supply with active PFC
• 110 to 240 Volts – 50/60Hz
• Power 900 W max

COOLING SYSTEM

• Advanced cooling system based on heatpipe technology
• Self adjusting variable speed fans for quiet operation
• Selectable ventilation user modes
• Safety protection against over-heating

HOUSING

• Moving head skeleton made of aluminium
• Heatsinks in aluminium and copper with satin finish
• Moulded covers in self-extinguishing, fire retardant ABS PC (V0 class)
• Two side handles for transportation
• IP20 protection rating
• Exterior finish: black (Carbon)

INSTALLATION

• Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: eight ¼ turn locking fittings allowing three different installation of Omega brackets on luminaire
• Safety cable attachment point

OPERATING PARAMETERS

• Operating positions: all
• Maximum permitted ambient temperature authorised (Ta max): 45°C (113°F)
• Minimum permitted ambient temperature authorised (Ta min): -10°C (14°F)
• Minimum usage distance: 2.0 m (79 inches)

COMPLIANCE

• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU
