BSS - AR133
Boite de direct active
Informations
- Référence : AR133
- Codart : AR133
Propriétés techniques
- Dimensions unitaires : 59 x 124 x 143 mm
- Poids unitaire : 650 g
Détails produit
Input Section
Input Impedance :
- 1M Ohm (pad at 0dB)
- 47k Ohm (pad at -20dB)
- 47k Ohm (pad at -40dB)
Max Input Level :
- +9dBu (pad at 0dB)
- +29dBu (pad at -20dB)
- +49dBu (pad at -40dB)

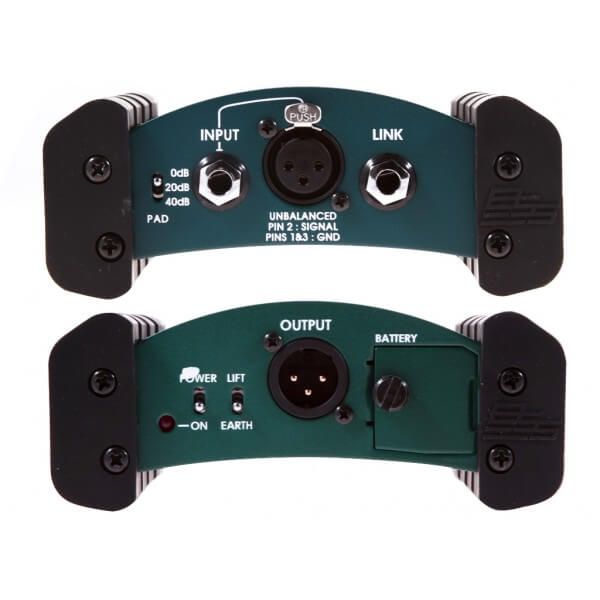

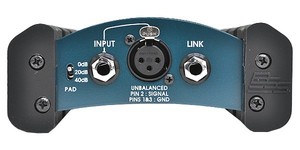

Connectors
- Two Parallel 1/4″ jack connectors and a parallel XLR connector (unbalanced)
Jack:
- Tip Hot (+ve)
- Sleeve Ground
XLR:
- Pin 2 Hot (+ve)
- Pin 1 & 3 Ground

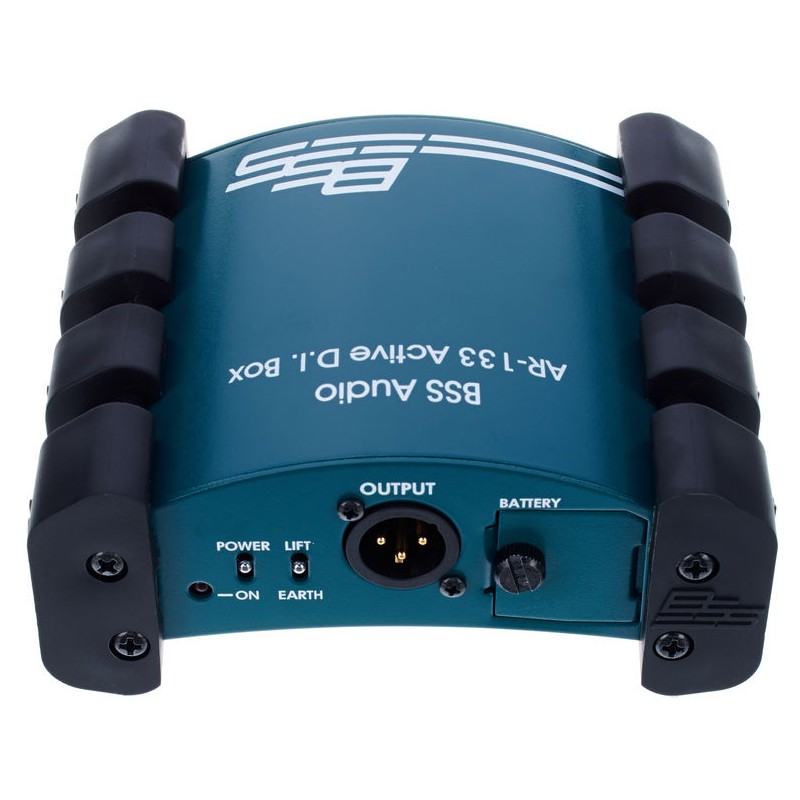

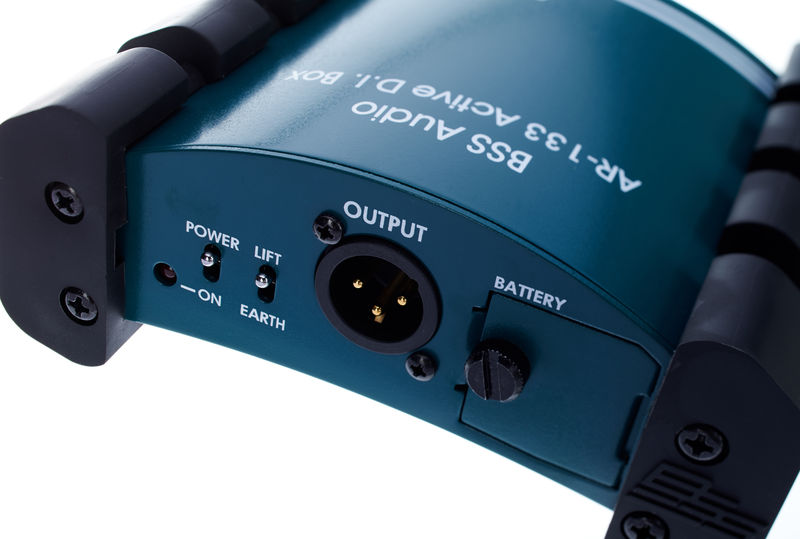

Output Section
Output :
- Transformer Balanced
Max. Output Level
- +8dBu into 600 Ohms or greater
Connector
- XLR3-32 or equivalent
System Performance
Distortion (THD)
- < 0.005% at 1khz, 0dbu output
Noise
- < -105db unweighted, 22hz-22khz, rms*
Frequency Response
- 30Hz to 20kHz, +0dB/-1dB
General
Main/Standby battery
- 9 volt PP3 type, preferably alkaline.
Current drain
- on phantom – less than 7.5mA
- on battery – less than 2mA.
Phantom Power
- +20 volts DC to +48 volts DC
