SHURE - WL185

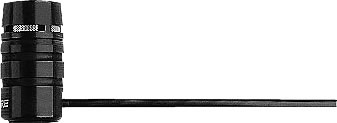

Micro cravate MICROFLEX pour émetteur HF pocket UR1 livré avec bonnettes et pince. Spécial orateur. Cardioïde
Informations
- Référence : WL185
- Codart : WL185
Propriétés techniques
- Poids unitaire : 36g
Documents à télécharger
Détails produit
| Features |
|
Recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise. Use of windscreen highly recommended. Pickup angle: 130 degrees
|
| Type |
| Condenser (electret bias) |
| Frequency Response |
| 50 to 17,000 Hz |
| Polar Pattern |
| Cardioïde |
| Sensitivity (1 Pa = 94 dB SPL) |
| -45.5 dBV/Pa |
| Maximum SPL |
| 130.5 dB SPL |
| Output Noise (A-weighted) |
| 28.0 dB SPL |
| Dynamic Range |
| 102,5 dB |
| Output Noise |
| 29 dB SPL, A-weighted |
| Output Impedance |
| 1800 ohms |
| Polarity |
| Positive pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1. |
| Power Requirements |
| Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter |
