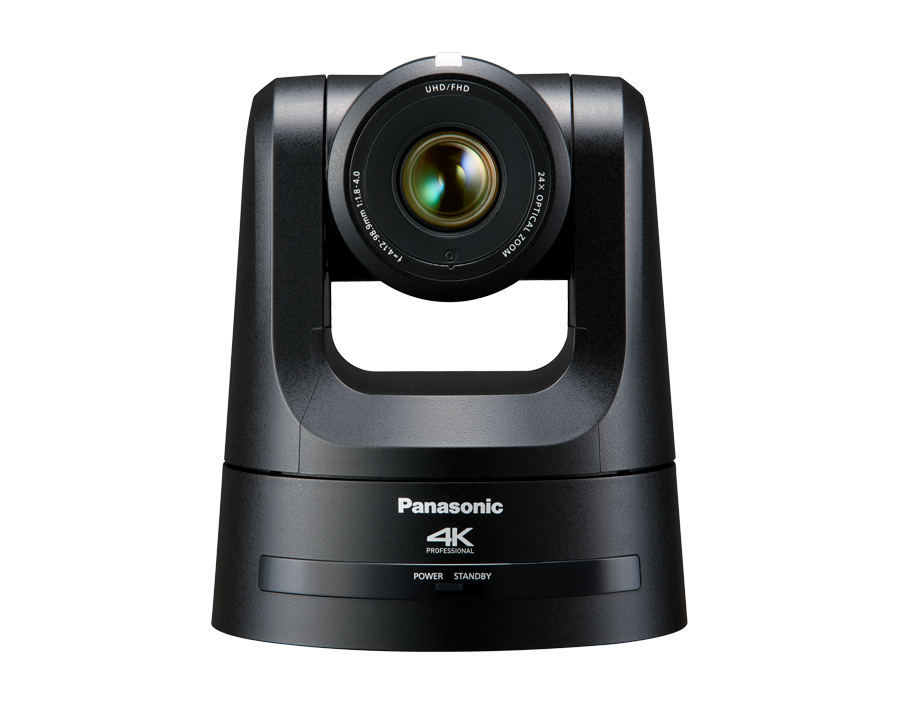

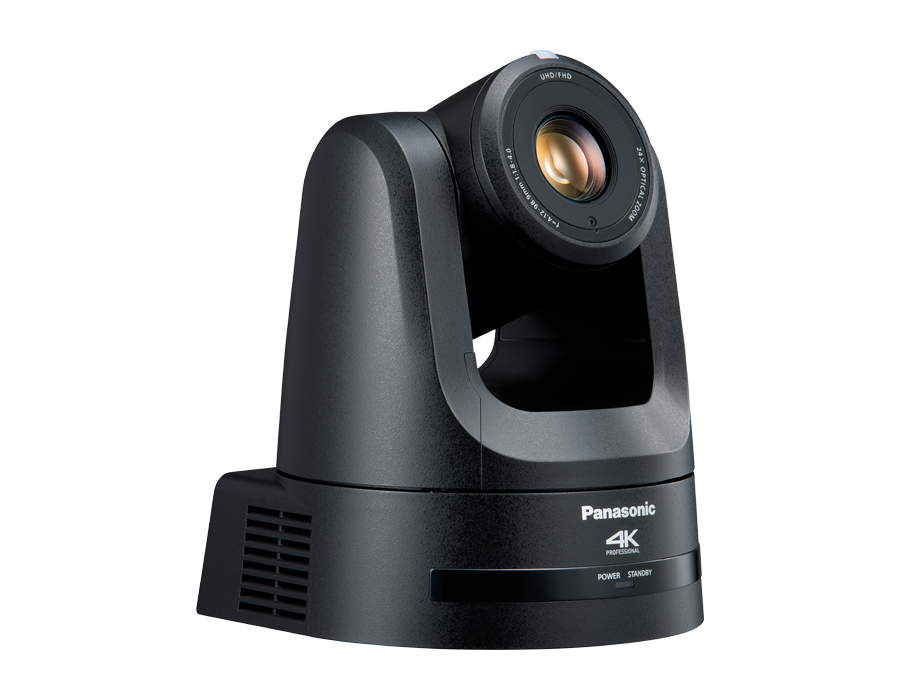

PANASONIC - AW-UE100

Caméra tourelle 4k, 12GSDI/3GSDI/HDMI, POE++, zoom x24 capteur 1/2,5''

Informations

Codart : AWUE100KEJ

Propriétés techniques

Dimensions unitaires : 169 x 170 x 205 mm
Poids unitaire : 2,2 kg
Consommation électrique : 36W

Documents à télécharger

Détails produit

Specifications

General

Power Requirements : 12 V DC (10.8 V to 13.2 V) (Supplied AC adaptor), 42 V to 57 V DC (PoE++ power supply)
PoE++ : IEEE802.3bt standard: DC 42 V to 57 V
(Software authentication (LLDP) is supported)
Current Consumption : 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply)
Ambient Operating Temperature : 0 °C to 40 °C (32 °F to 104 °F)
Allowable Humidity Ranges : 20 % to 90 % (no condensation)
Storage Temperature –20 °C to 50 °C (–4 °F to 122 °F)
Mass :
- Approx. 2.2 kg (4.84 lb) (excluding cable cover, mount bracket)
- Approx. 2.3 kg (5.06 lb) (including cable cover, excluding mount bracket)
Dimensions (W x H x D) : 169.2 mm x 204.6 mm x 170.6 mm (6-21/32 inches x 8-1/16 inches x 6-23/32 inches) (excluding protrusions, cable cover, mount bracket)
Controller Supported : AW-RP150, AW-RP60, AK-HRP1010GJ, AK-HRP1015GJ (Not available in some areas), AK-HRP250GJ

Camera Unit

Imaging Sensors : 1/2.5-type 4K MOS x 1
Effective Pixels : Approx. 8,490,000 pixels
Lens :
- Motorized Optical 24x zoom, F1.8 to F4.0 [f=4.12 mm (5/32 inches) to 98.9 mm (3?29/32 inches); 35 mm (1?3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23?5/8 inches)]
Zoom :
- Optical zoom: 24x
- i.Zoom: UHD 28x, FHD 36x
- Digital zoom: 1.4x, 2x
Conversion Lens : Not supported
Angle of View Range :
- Horizontal angle of view: 74.1° (wide) to 3.3° (tele)
- Vertical angle of view: 46.0° (wide) to 1.9° (tele)
- Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
Optical Filter : Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Focus : Switching between auto and manual
Focus Distance :
- Entire zooming range: 1200 mm (3.9 ft)
- Wide end: 100 mm (0.33 ft)
Color Separation Optical System : 1MOS
Standard Sensitivity :
- F4, 2000 lx (When normal mode is selected)
- F5.6, 2000 lx (When High Sens mode is selected)
Minimum Illumination : 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
S/N : 60dB(typ) (When [Shooting Mode] is [Normal])
Horizontal Resolution : 1500 TV lines Typ (Center area)
Gain Selection :
- Auto, 0 dB to 36 dB*1
- Super Gain function equipped : 37 dB to 42 dB
Frame Mix*2 : Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Electronic Shutter Speed
- 59.94p/59.94i : 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 29.97p : 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 23.98p/24p : 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 50p/50i : 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 25p : 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan :
- 59.94p/59.94i : 60.00 Hz to 7200 Hz
- 29.97p : 30.00 Hz to 7200 Hz
- 23.98p/24p : 24.00 Hz to 7200 Hz
- 50p/50i : 50.00 Hz to 7200 Hz
- 25p : 25.00 Hz to 7200 Hz
Gamma : HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3
White Balance :
- ATW : 3200K, 5600K
- AWB : AWB-A / AWB-B
- VAR (selectable between 2000K and 15000K by designating a value)
Chroma Amount Variability : OFF, –99 % to 99 %
Scene File : Scene1, Scene2, Scene3, Scene4
Output Format :
- SDI Output 4K : 2160/59.94p, 2160/50p, 2160/29.97p*3, 2160/25p*3, 2160/24p*3, 2160/23.98p*3
- SDI Output HD :
  - 1080/59.94p, 1080/50p, 1080/29.97p*3, 1080/29.97PsF, 1080/25p*3, 1080/25PsF, 1080/23.98p*4, 1080/24p*3, 1080/23.98p*3, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
- HDMI Output 4K : 2160/59.94p, 2160/50p, 2160/29.97p*3, 2160/25p*3, 2160/24p*3, 2160/23.98p*3
- HDMI Output HD : 1080/59.94p, 1080/50p, 1080/29.97p*3, 1080/25p*3, 1080/23.98p*10, 1080/24p*3, 1080/23.98p*3, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p

Synchronization System
Internal/External synchronization (BBS/Tri-level sync)

Input

Input Connector :
- DC 12 V IN, G/L IN : BBS (Black Burst Sync), tri-level sync supported 75 Ω terminal (BNCx1)
- MIC/LINE input :
  - Compatible (SDI/HDMI/IP)
  - AAC compatible (compatible with IP only)
  - ø 3.5 mm stereo mini jack
  - Input impedance: Approx. 10 kΩ (unbalanced)
    - During MIC input
      - Input level: –40 dBV (0 dB=1 V/Pa, 1 kHz)
      - Plug-in power compatible, supply voltage: 2.5 V ± 0.5 V
    - During LINE input
      - Input level: –10 dBV
    - Input volume variable range: –36 dB to 12 dB (3 dB step)
    - Embedded audio output level: –12 dBFS
    - Sampling frequency: 48 kHz
    - Quantization bit rate: 24bit (SDI, HDMI), 16bit (IP)

Output

Video Output :
- HDMI HDMI 2.0 connector
- 4:2:2/10bit
  - HDCP is not supported.
  - Viera Link is not supported.
- 12G-SDI OUT :
  - SMPTE 2082-1, SMPTE424M/SMPTE292M / 75 Ω (BNC x 1)
    - Level-A/Level-B supported
- 3G-SDI OUT :
  - SMPTE424M/SMPTE292M / 75 Ω (BNC x 1)
    - Level-A/Level-B supported

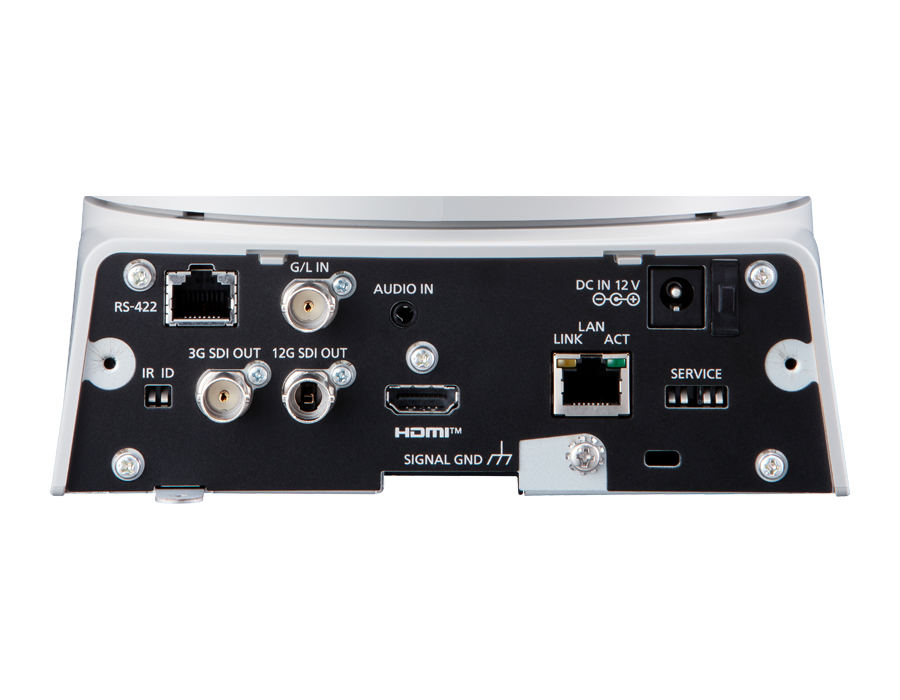

Input/Output

Input/Output Connector :
- LAN : LAN terminal for IP control and video transmission (RJ?45) ; PoE++ power terminal (IEEE802.3bt compliant)
RS-422 : CONTROL IN RS-422A (RJ?45)

Pan-tilt Head Unit

Camera/Pan-tilt Head Control :
- IP connecting cable : LAN cable*5:(category 5e or above, straight cable), max. 100 m (328 ft)
- AW protocol connecting cable : LAN cable*5:(category 5e or above, straight cable), max. 1000 m (3280 ft)
Installation Method : Stand-alone (Desktop) or suspended (Hanging)*6
Pan/tilt Operation Speed :
- Speed range: 0.08°/s to 60°/s (Normal mode)
  - 3 speed modes installed
- Normal: 60°/s, Fast1: 90°/s*7, Fast2: 180°/s*7
Panning Range : ±175°
Tilting range : -30° to 210°*8
Quietness : NC25 or less

Supported Operating Systems and Web Browsers*9

Supported Operating Systems and Web Browsers :
- Windows
  - Microsoft® Windows® 10
  - Microsoft Edge
  - Google Chrome
- Mac
  - MacOS 10.13/Safari 13, MacOS 10.14/Safari 13
  - MacOS 10.15/Safari 13, MacOS 10.15/Google Chrome
  - iPhone / iPad iOS
  - Safari
  - iPadOS
- Android
  - Android OS
  - Google Chrome

IP Streaming

Image Streaming Mode : JPEG (MJPEG), H.264, H.265, NDI®|HX, High Bandwidth NDI®
Image Resolution : 3840×2160, 1920×1080, 1280×720, 640×360, 320×180
Image Transmission Setting (JPEG) :
- Frame Rate: Maximum 30 fps
- Image quality (Fine / Normal)
Image Transmission Setting (H.264) :
- Transmission Type
  - Unicast port (AUTO)
  - Unicast port (MANUAL)
  - Multicast port
- Transmission Priority
  - Constant bit rate
  - Frame rate
  - Best effort
- Frame Rate :
  - [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps)
  - [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps)
- Max Bit Rate :
  - 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps / 32768kbps / 40960kbps / 51200kbps / 76800kbps
Image Transmission Setting (H.265) :
- Transmission Type Unicast port (AUTO)
  - Unicast port (MANUAL)
  - Multicast port
- Frame Rate :
  - [60Hz] 30fps
  - [50Hz] 25fps
- Max Bit Rate : 8192kbps / 12288kbps / 25600kbps / 51200kbps / 76800kbps
Audio Compression : Type AAC-LC, 48 kHz / 16 bit / 2ch
Supported Protocol :
- IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT, SNMP, MPEG2-TS over UDP
- IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, SNMP, MPEG2-TS over UDP
