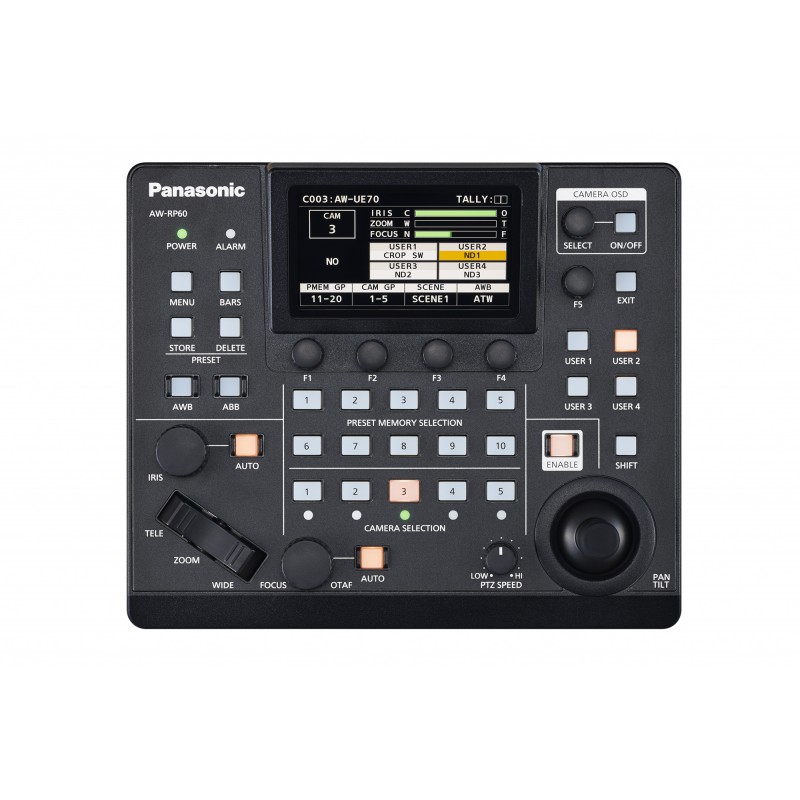

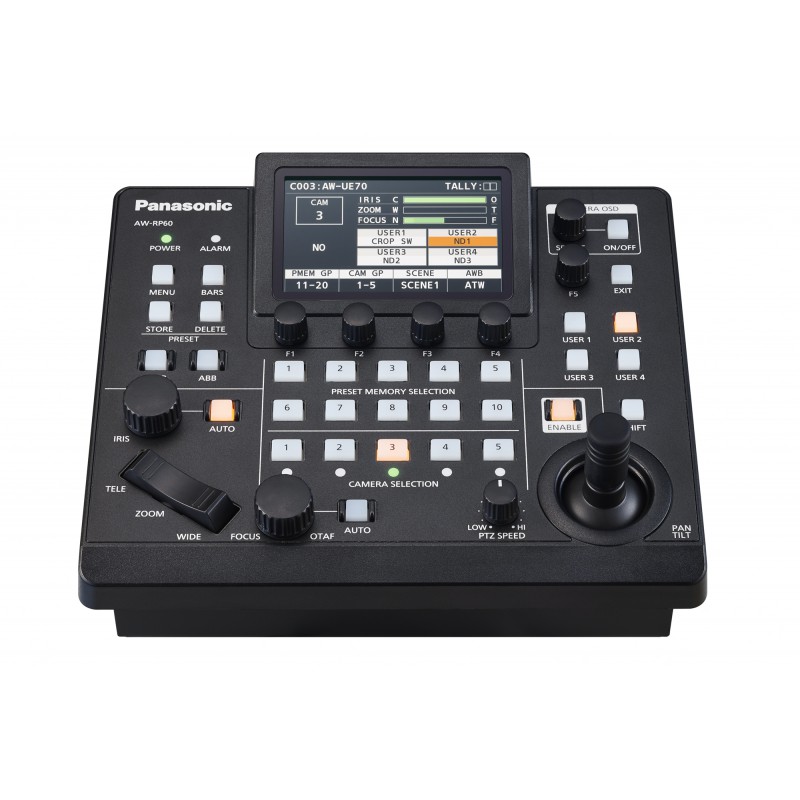

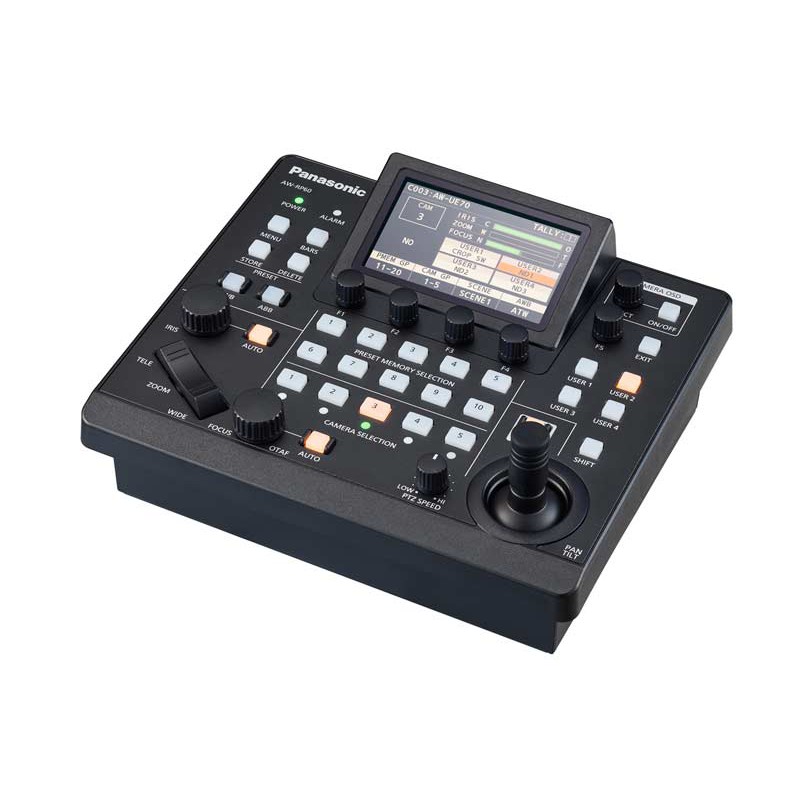

PANASONIC - AWRP60

Spécifications

• Power Requirements : 12 V DC (10.8 V to 13.2 V)
• PoE* : IEEE802.3af standard: 42 V to 57 V DC (Camera Input)
• Current Consumption : 0.9 A (XLR connector input), 0.3 A (PoE power supply)
• Mass : 1.5 kg (3.31 lbs)
• Dimensions (W x H x D) (mm) : W 210 mm x H 92 mm x D 177 mm (excluding protrusions)
• Dimensions (W x H x D) (inch) : 8-9/32 inches x 3-5/8 inches x 6-31/32 inches (excluding protrusions)
• Display : 3.5-type liquid crystal (QHD 960 x 540)
• Connection Specifications :
  • No. of Connectable Cameras :
    • 200 (IP), 5 (RS422)
    • *Up to 100 for cameras other than the AW-UE150
  • Remote Camera Selection :
    • 5 (6 to 200 controlled from the LCD)
  • No. of Camera Groups :
    • 20 (10 units/group)
  • No. of Memory Presets :
    • 100

Note : *PoE is the abbreviation for Power over Ethernet.
