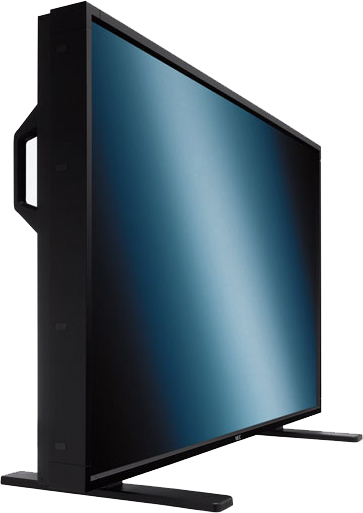

NEC - LCD4020
Ecran LCD 40"" (1360 x 768 - 16/9)
Informations
- Codart : LCD4020
Propriétés techniques
- Dimensions unitaires : 920 x 567 x 330 mm (avec pied) / 920 x 532 x 140 (sans pied)
- Poids unitaire : 31,1 kg (avec pied) / 29,4 kg (sans pied)

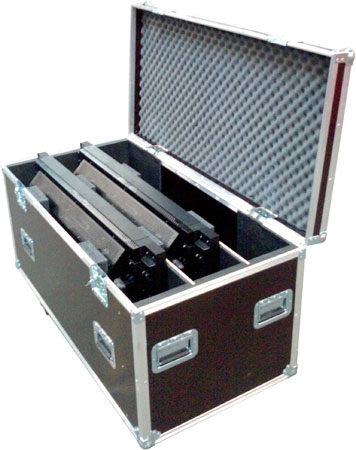

- Dimensions en flight-case (X2) : 127 x 63 x 76 mm
- Poids en flight-case (X2) : 126 kg
Documents à télécharger
Détails produit
- Panel Technology : PVA TFT
- Active Screen Area (W x H) [mm] : 885.2 x 497.6
- Screen Size [inch/cm] : 40/101.6
- Viewing Angle (typ.) : 178° horizontal / 178° vertical (at contrast ratio 10:1)
- Screen Aspect Ratio : 16:9
- Pixel Pitch [mm] : 0.648 x 0.648
- Contrast Ratio (typ.) : 1200:1
- Brightness (typ.) [cd/m2] : 500 (factory pre-set 5°C – 40°C); 700 (5°C – 20°C)
- Response Time (typ.) [ms] : 8 (tr + tf ; grey-to-grey); 16 (6 white/black; 10 black/white)
- Colours [million] : 16.77
- Horizontal Frequency [kHz] : 31.5-91.1 (analog and digital)
- Vertical Frequency [Hz] : 50.0-85.0
- Optimum Resolution : 1360 x 768 at 60 Hz
- Native Resolution : 1366 x 768 at 60 Hz
- Other Resolutions : 1920 x 1080; 1366 x 768; 1440 x 1050; 1680 x 1050; 1600 x 1200; 1280 x 1024; 1280 x 768; 1024 x 768; 832 x 624; 800 x 600; 720 x 400; 640 x 480
- Video Input : Analog: 5 x BNC, Component, Composite (via BNC and Cinch); 1 x S-Video; 1 x D-Sub 15; Digital: 1 x DVI-D (with HDCP); HDMI
- Video Output : Analog: 5 x BNC, Composite (via BNC)
- Audio Input : 2 x Cinch, 1 x 3.5 mm Head-jack
- Audio Output : 1 x Cinch
- Option Slot : CAT 5 receiver, HD-SDI board, Single board computer, DVI daisy chain board
- Plug & Play : VESA DDC2Bi
- Safety and Ergonomics : UL/C-UL or CSA; FCC Class B; TÜV GS; VCCI; CE; C-tick; PSB; CCC
- Power Consumption : 100-120 V/220-240 V; 3.0A/1.2A; internal power supply
- Power Management : VESA DPMS
- Power Requirements [W] : 170 (at 500 cd/m2); 200 (max.)
- Operating Temperature [°C] : + 5 to + 40*
- Operating Humidity [%] : 20 to 80
- VESA Mounting Interface : 600 x 200 (FDM); 16 holes / 100 mm spacing
- Dimensions (W x H x D) [mm] : With stand; 919.7 x 566.7 x 330.0; Without stand: 919.7 x 532.2 x 140.0
- Bezel Width [mm] : 15.5 left/right/top/bottom
- Specials : Scheduler (with RTC); OmniColorTM: sRGB Support and 6-Axis-Colour-Control; AutoBright (Signal Input); Off-Timer; TileMatrix (5 x 5); Colour Temperature Mode; PIN Code Protection; DICOM Profile; SCART Support; CableComp (digital 30m, analog 100m); Selectable ID; Picture-in-Picture Mode; Picture-over-Picture Mode; NaViSet® and NaViSet® Administrator compatible; Overheating Protection; Power-On Delay; Touch Panel ready
- Weight [kg] : With stand: 31.1 ; Without stand: 29.4
- Supported TV Standards : PAL/SECAM/NTSC
- Video Modes : 480i; 480p; 576i; 576p; 2 x 720p (50 and 60 Hz); 2 x 1080i (50 and 60 Hz); 2 x 1080p (50 and 60 Hz)
- Audio Functions : Optional speakers (15 W + 15 W)
- Remote Control : RS-232C (9 pin D-Sub) Input + Output; Dsub 15 and DVI-D (DDC/CI); Remote Control IR
- Colour Versions : Black Front Bezel, Black Back Cabinet
- Shipping Content : Display, Stand; Power Cable; Remote Control (IR); CD Manual; VGA-VGA Cable; Conclusion; Cover
