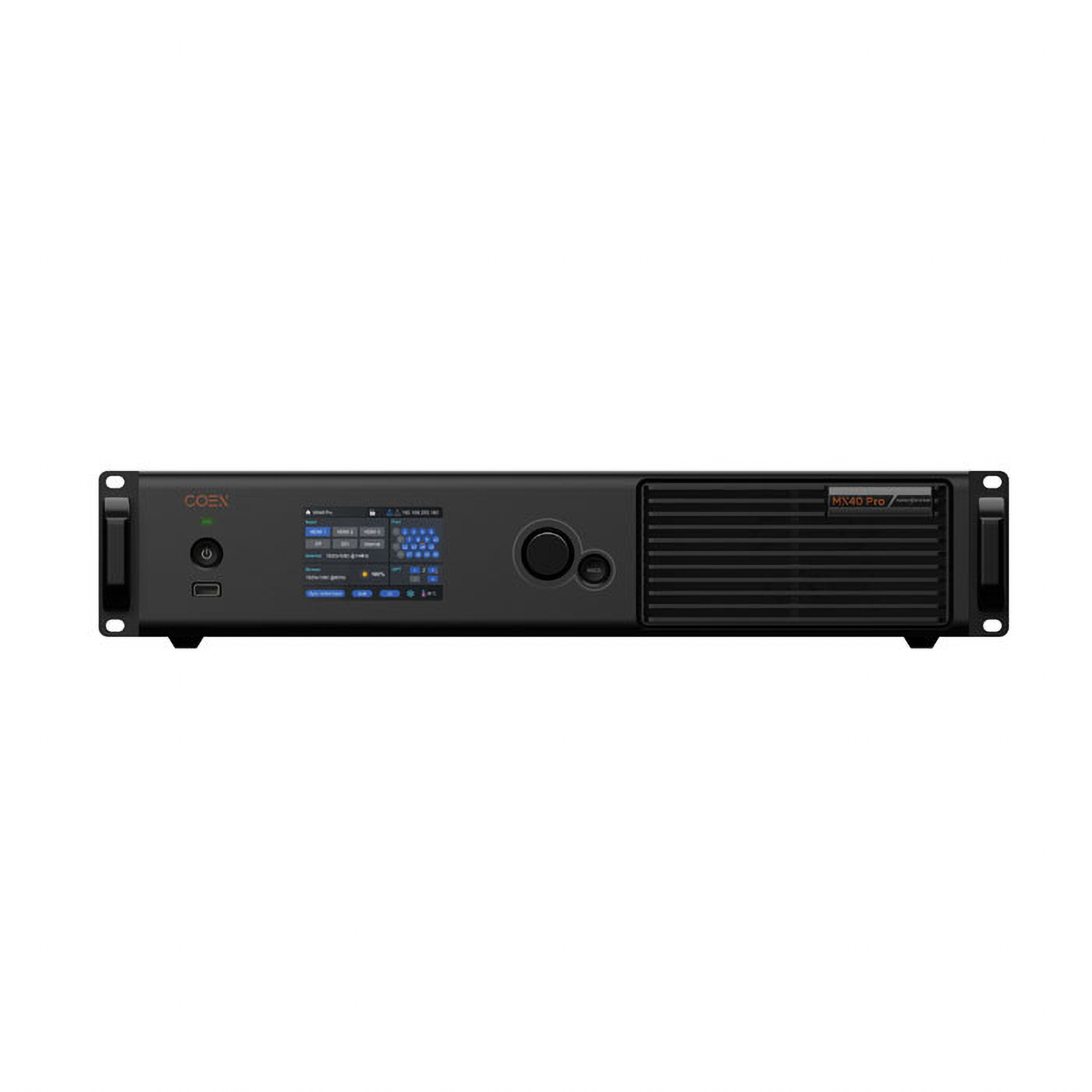

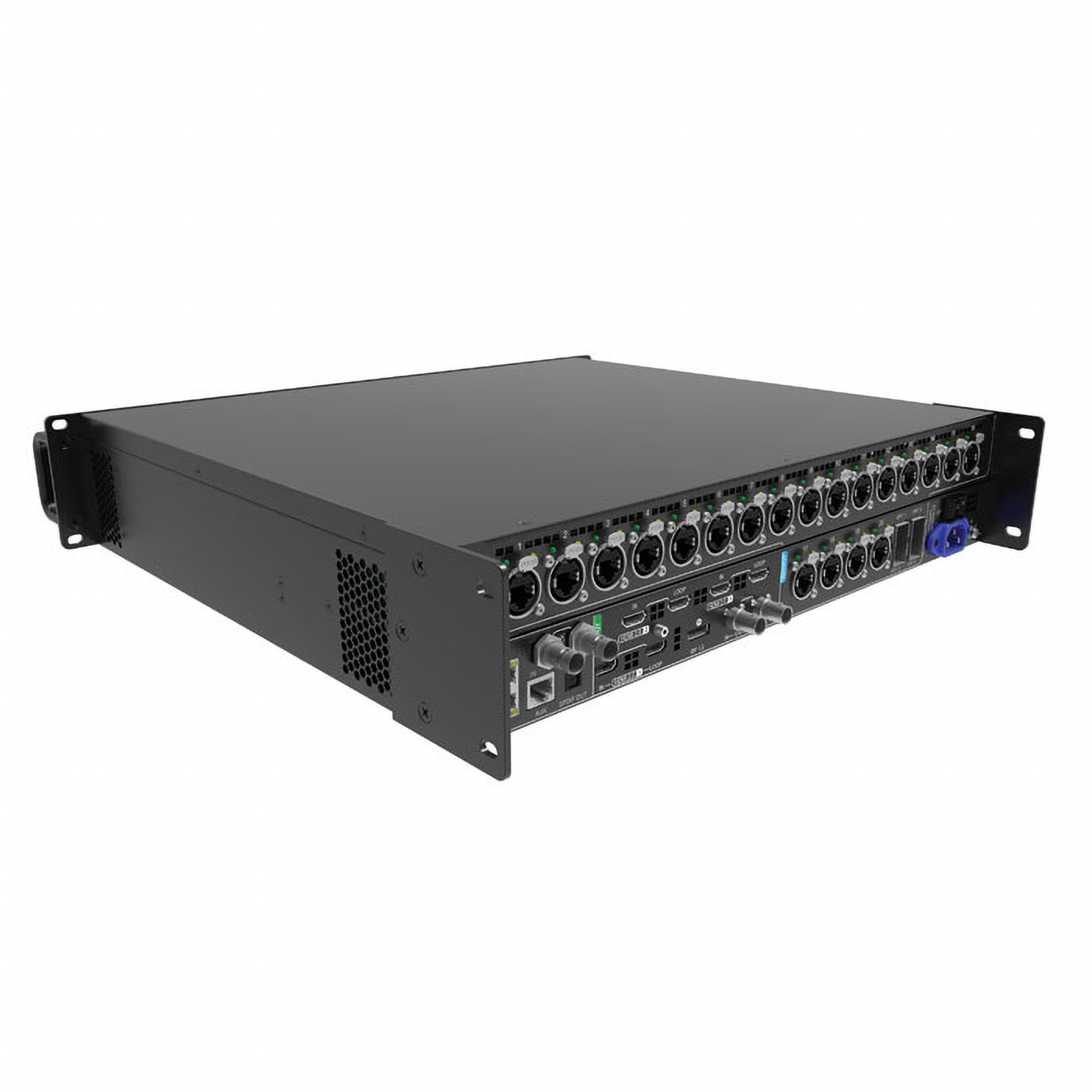

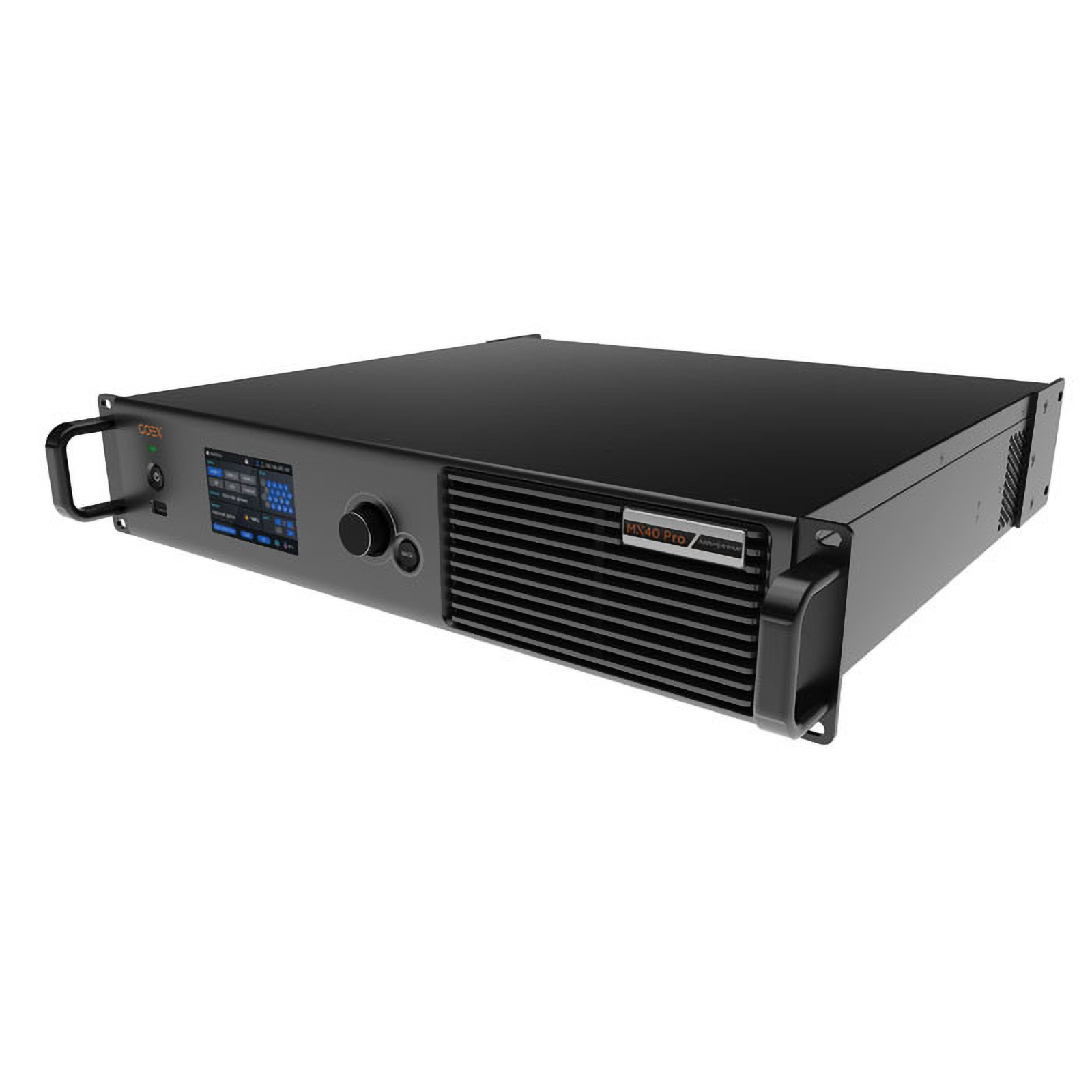

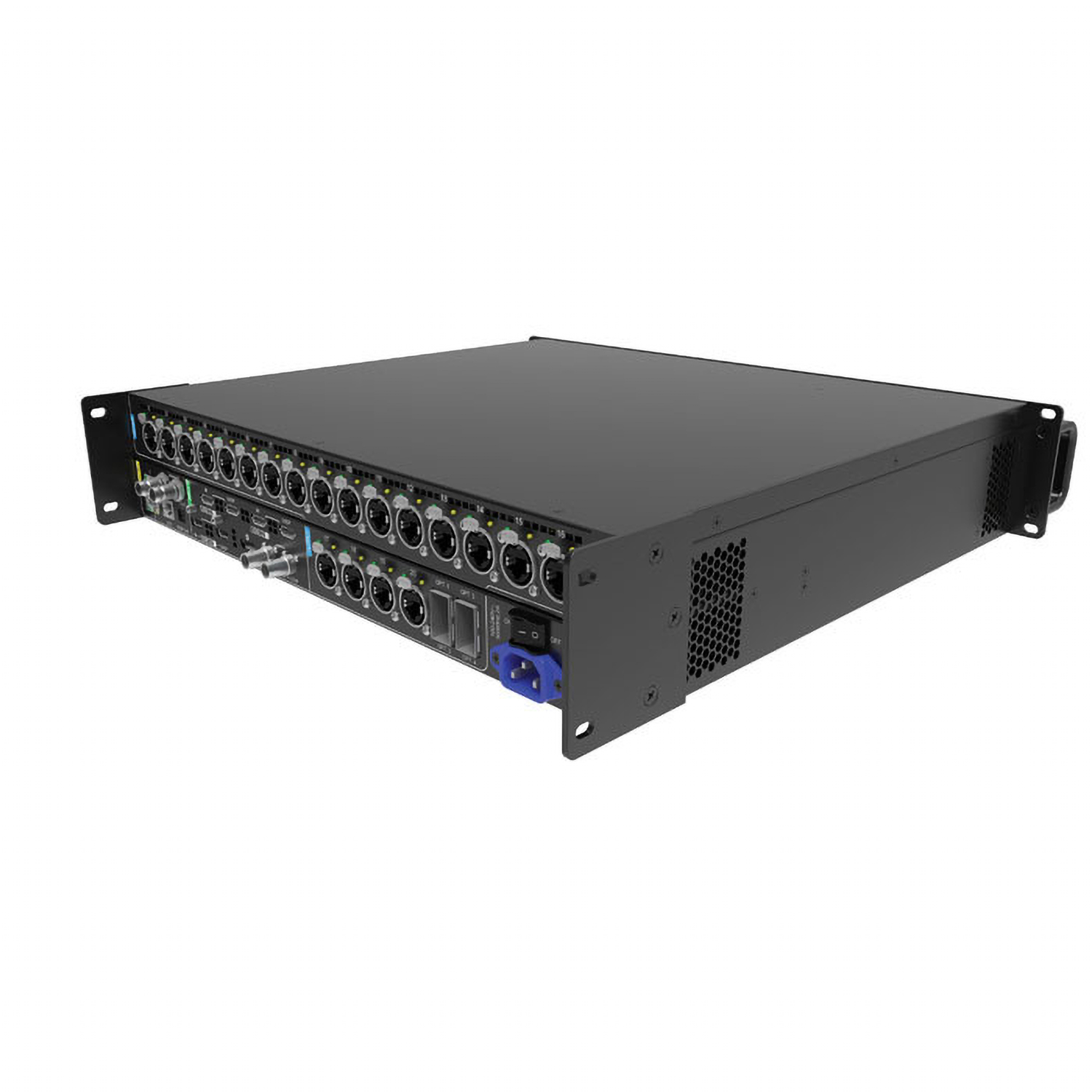

Novastar - MX40 PRO
Controleur Led Nova 4k 20 sorties
Informations
- Codart : MX40PRO
Propriétés techniques
- Dimensions unitaires : 483 x 467 x 94 mm
- Poids unitaire : 7,54 kg
Détails produit
SPECIFICATIONS
Inputs:
- 3x HDMI 2.0 (max. 4096×2160@60Hz or 8192×1080@60Hz)
- 1x DP 1.2 (max. 4096×2160@60Hz or 8192×1080@60Hz)
- 1x 12G-SDI (max. 4096×2160@60Hz), supports ST-2082, ST-2081, ST-424 & ST-292

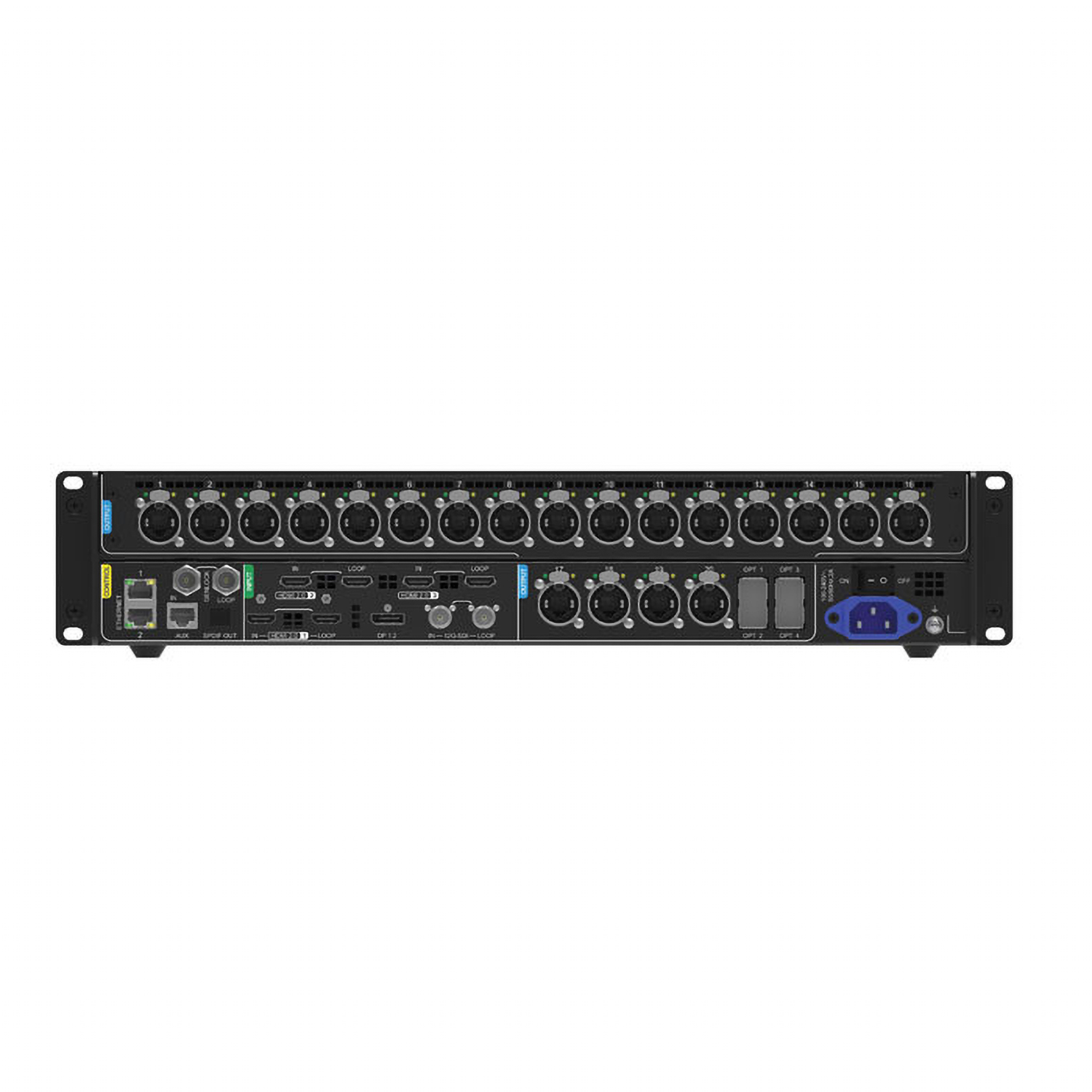

Outputs:
- 20x LED-Out (RJ45):
- 8Bit@60Hz: 650,000 pixels
- 10Bit@60Hz: 480.00 Pixel (Only in combination with A10s Pro Receiving card)
- 10/12bit@60Hz: 325,000 pixels
- 3x HDMI 2.0 Loop
- 1x 12G-SDI Loop
- 4x OPT-Out (10G)
further features:
- Genlock
- Color Processing: Color Replacement, Color Correction, 3D LUTs, Color Curves
- Dynamic Booster
- Grayscale calibration
- Brightness & Chroma Calibration
- HDR10
- low latency
- 3D capable
- integrated network switch for cascading multiple devices
- general specifications:
- Supply voltage: AC 100-240V, 50/60HZ
- Dimensions: 482.6 x 467.0 x 94.2mm (WxDxH)
- Power consumption: 70Watt
- Weight: 7.5kg
