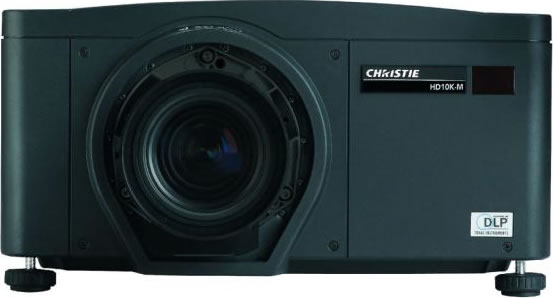

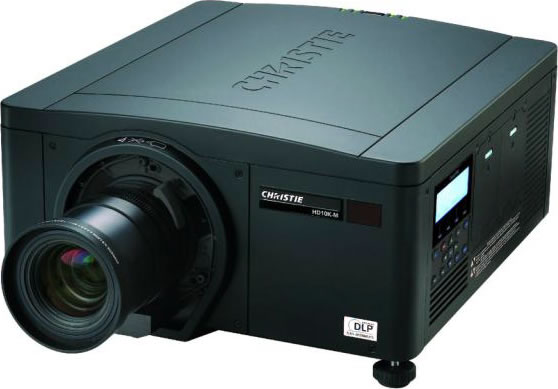

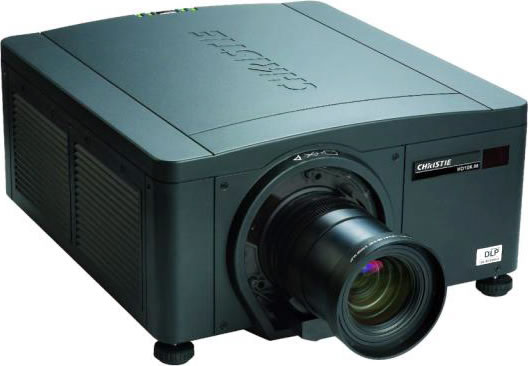

CHRISTIE - HD10K-M

The most compact in its class, the Christie M Series projector platform provides the high-performance and feature-rich standards expected in all Christie products. Embedded warping, blending and colour matching, along with built-in portrait capabilities give you even more installation flexibility with this HD model.

The Roadster HD10K-M, at 11,000 centre lumens (dual lamps, 350W), offers high efficiency and low cost of ownership by drawing a maximum power of 1320W giving you full brightness while using less power.

Features

• True HD native resolution (1920 x 1080)
• 10,000 ANSI lumens (11,000 centre lumens)
• Variable contrast ratio of 2500-10000:1 dynamic iris (Full on, Full off) / 650:1 ANSI for crisp, detailed images.
• At maximum brightness (9500 ANSI lumens), the projector draws a maximum power of 1320W
• Smallest chasis in its class
• Dual mercury lamps (350W)
• Two high definition input channels that allow 4:4:4 HD signals
• Comprehensive Color Adjustment (CCA™)
• Embedded Christie Twist™ image warping and edge-blending
• Dust sealed engine, filter-free design
• Motorised yellow notch filter
• Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
• Multi-windowing and screen processing (up to a 3×3 array)
• Dynamic iris
• 3D upgradable
• Built-in portrait display capabilities


• Dual lamp: 10,000 ANSI lumens (11,000 centre lumens)
• Single lamp: 5000 ANSI lumens (5500 centre lumens)

Contrast

• 2500-10,000:1 uding dynamic iris (full on, full off)
• 650:1 ANSI (typical)

Display technology and resolution

• 3-chip 0.95″ DLP­
• HD (1920 x 1080) resolution

Lamp

• Dual 350W PVIP
• High power: 1500 hrs @ 350W
• Low power: 2000 hrs @ 300W

Input signal compatibility

• HDTV formats VGA through to QXGA (2048 x 1536)
• Accepts all current HDTV/DTV formats
• Multi-standard video decoder
• Horizontal and vertical scaling, all inputs

Scan rates

• Horizontal: 15 to 120 kHz
• Vertical: 23.97 to 150 Hz

Pixel clock

• 165 MHz

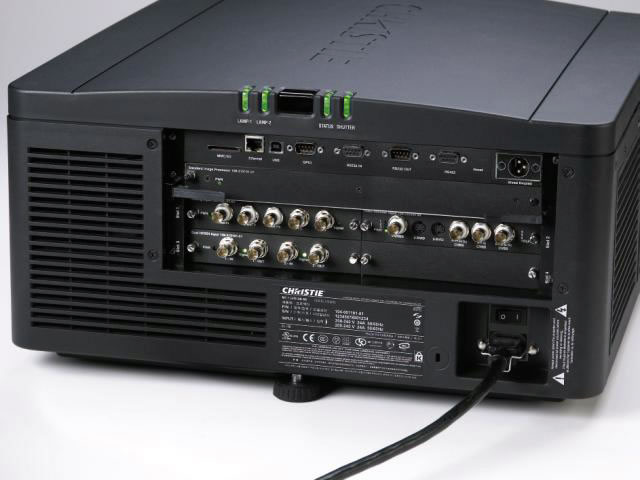

Inputs, controls and networking

• RS232 in/out
• RS422 in
• Ethernet (10/100)
• USB device
• GPIO (RS232 9-pin male connector)

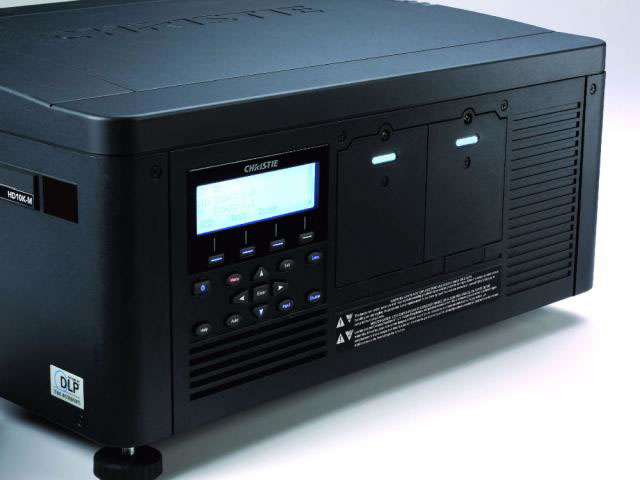

• Built-in backlit LCD keypad
• Remote control (with optional wired XLR connection)

Optical system

• Dust sealed, 3-Chip DMD light engine
• Motorised horizontal and veritcal lens offset
• Scheimpflug (tilt) adjustment
• Built-in light shutter

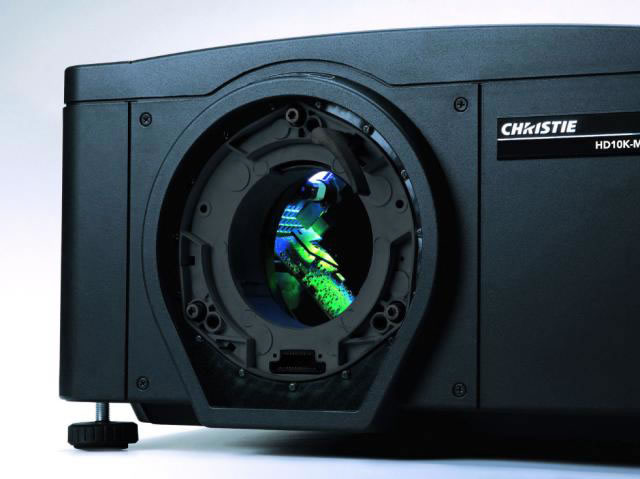

• Tool-free lens insertion system

Fixed lenses

• ILS lens 0.73:1 SX+/0.67:1 HD*
• ILS lens 1.2:1 SX+/1.1:1HD

Zoom lenses

• ILS lens 1.25-1.6:1 SX+/1.16-1.49:1 HD**
• ILS lens 1.5-2.0:1 SX+/1.4-1.8:1 HD
• ILS lens 2.0-2.8:1 SX+/1.8-2.6:1 HD
• ILS lens 2.8-4.5:1 SX+/2.6-4.1:1 HD
• ILS lens 4.5-7.5:1 SX+/4.1-6.9:1 HD
• ILS lens 7.5-11.2:1 SX+/6.9-10.4:1 HD

Lens offsets

• +/- 120% Vertical
• +/- 54% Horizontal
• (* ±35%V / ±12%H)
• (** ±100%V / ±40%H)

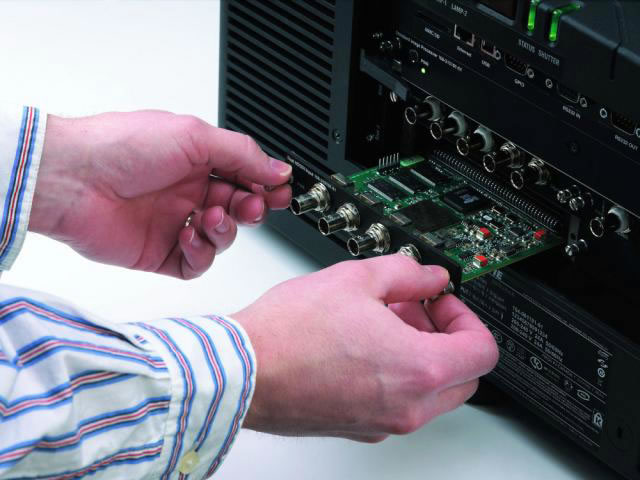

Standard accessories

• Analog BNC input card
• Dual-link DVI input card
• Dual SD/HD-SDI input card
• Video decoder
• User manual
• IR remote
• Line cord
• Stacking frame

Enhanced feature sets

• LiteLOC™
• Comprehensive colour Adjustment (CCA™)
• Embedded Christie Twist™ image warping and edge-blending
• Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset
• Multi-windowing and screen processing (up to a 2×3 array)
• Dynamic iris
• Menus in five languages
• 99 channel memories
• Auto setup
• Digital keystone correction
• Dust sealed engine, filter-free design
• Motorised yellow notch filter (HD & WUXGA models only)
• Built-in portrait display capabilities*
• 3D upgradable
• *Christie M Series stacking frame is required in portrait orientation.

Power requirements

• 110-240 VAC 50/60 Hz operating voltage
• 13.2 A @100V operating current
• 1320 W power consumption
• 4508 BTU/hr dissipation

Operating environment

• Temp: 40 to 104° F (5 to 40° C)
• Humidity: 10-80% non-condensing

Regulatory approvals

• UL/CSA/IEC 60950 (3rd edition)
• FCC Class A, CE, CCC
• This product conforms to all relevant European directives, standards, safety, health and environmental concerns
• RoHS, WEEE
