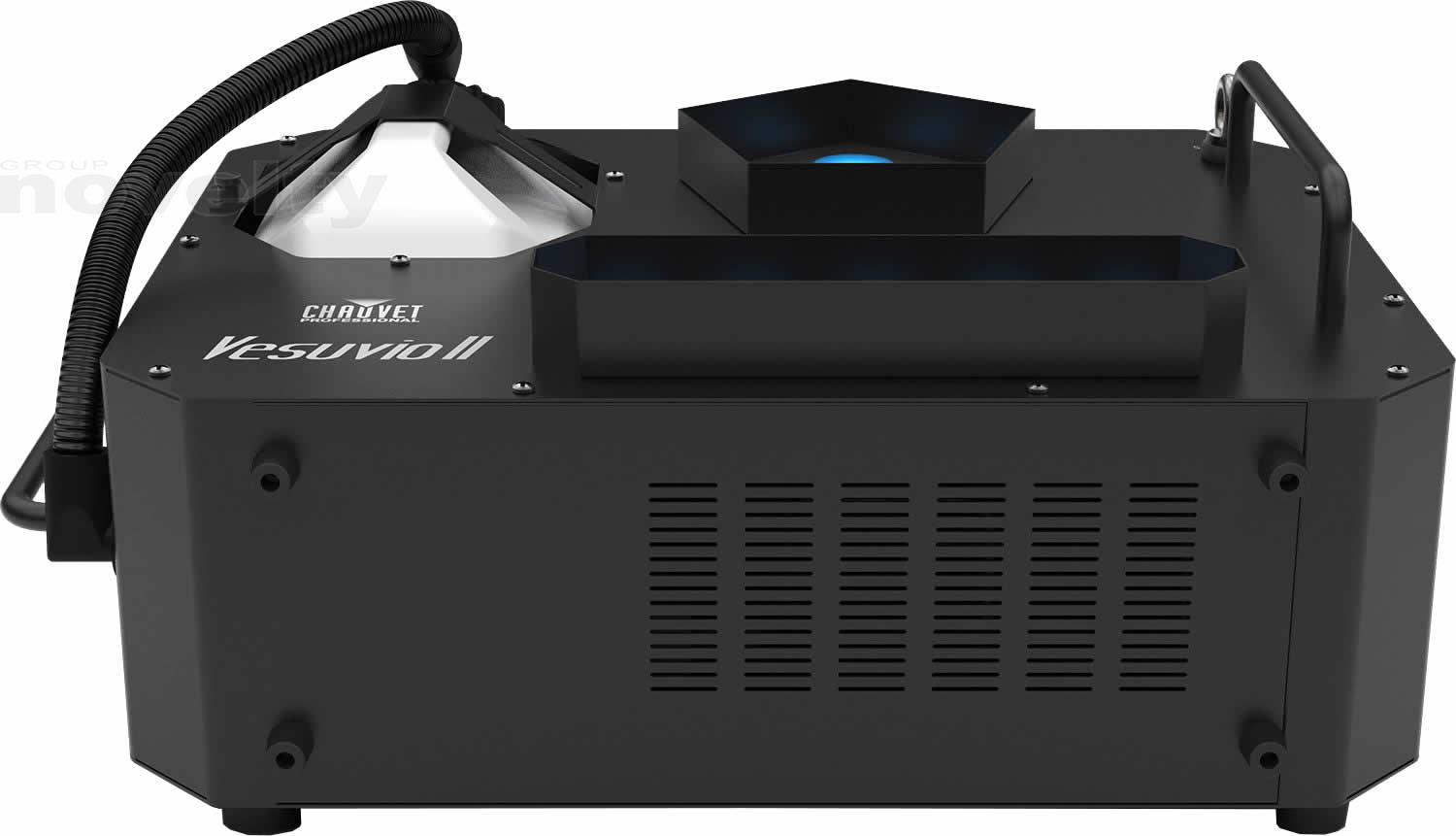

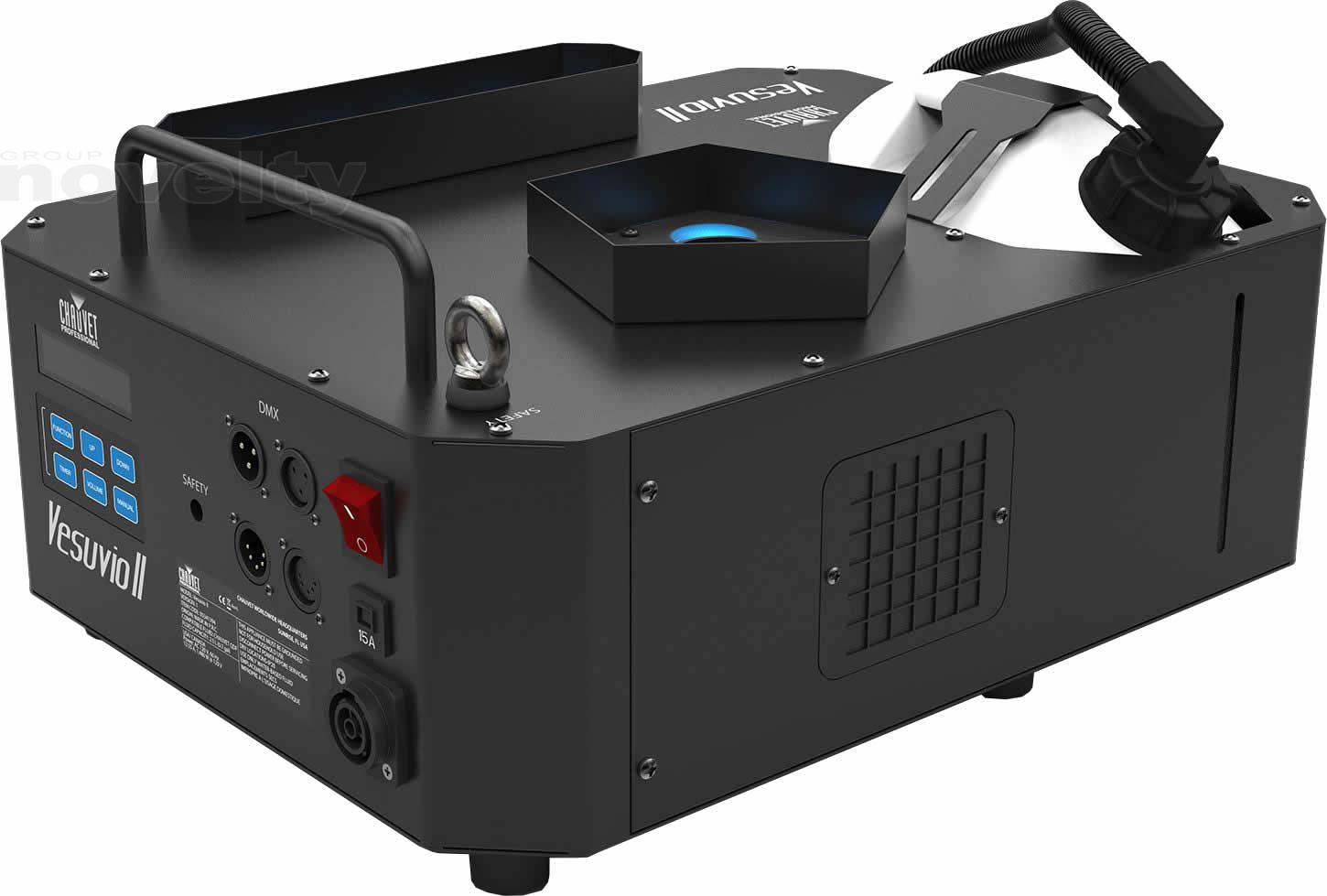

Chauvet Vesuvio II

Descriptions détaillées

Vesuvio II illuminates bursts of fog with advanced RGBA+UV LED color mixing, providing ferocious effects for events and performances. Featuring an impressive 40,000 cubic feet of fog per minute, it boasts a best in class 40 seconds of full burst output. New dual LED sections give greater creative control for a more even coverage of light. The Vesuvio II is built for efficiency, consuming only 80ml/min of QDL fluid. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets. It works best with the Chauvet HDF high-density and QDF quick dissipating fluid.

AT A GLANCE

• Advanced red, green, blue, amber, and UV (RGBA/UV) LED color mixing
• 40 second continuous bursts of fog, for intense effects and performance
• 40,000 CFM fog output for intense, large effects
• 2.5 l fluid tank for reliability in production
• Strong, sturdy construction for numerous production types
• DMX control for ease of use in production situations
• 3- and 5-pin DMX input/output connections

SPECIFICATIONS
OPTICAL

• Light Source: 10 LEDs (RGBA/UV) 8.5 W, (3 A), 50,000 hours life expectancy
• Illuminance (Center): 199.5 lux @ 5 m
• Illuminance (Linear): 154 lux @ 5 m
• Illuminance (Both): 334 lux @ 5 m
• PWM Frequency: 126 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• Output: 40,000 cfm
• Low Fluid Shutdown: No

CONSTRUCTION / PHYSICAL

• Exterior Color: BLACK
• Housing Material: Steel
• Tank Capacity: 0.7 gal (2.5 l)
• Fluid Consumption: 80 ml/min

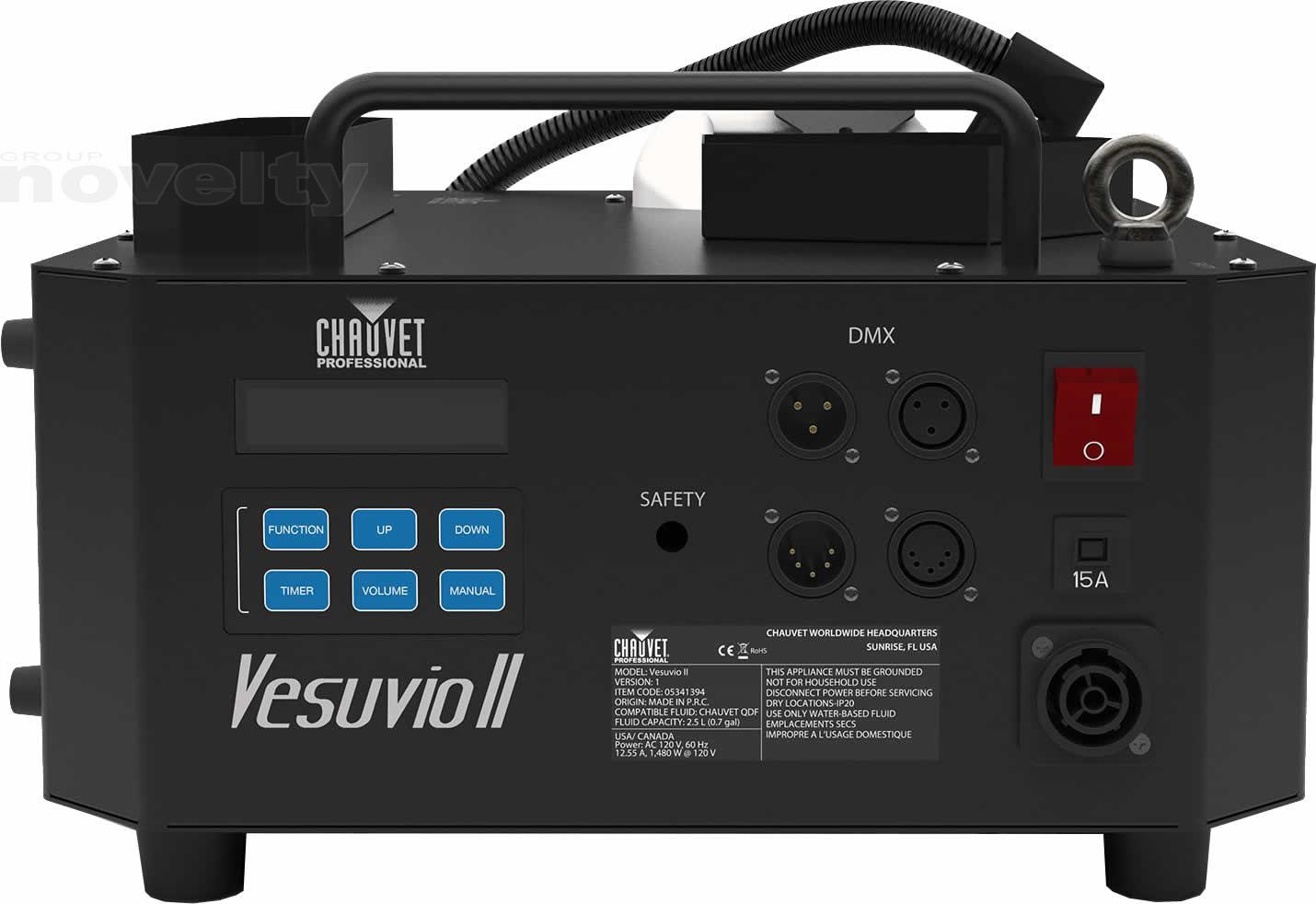

CONNECTIONS

• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX
• DMX Channels: 15
• Modes/Personalities: 1 personalities
• On-Board Control: Yes
• Included Remote: No

ELECTRICAL

• Input Voltage (120V): 120 VAC, 60 Hz
• Input Voltage (220V): 230 VAC, 50 Hz
• Power and Current (120V): 1,480 W, 12.55 A @ 120 V, 60 Hz
• Power and Current (220V): 2,880 W, 12.55 A @ 230V, 60 Hz
• Heat-up Time (120V): 10 min
• Heat-up Time (220V): 10 min
• Breaker Size (120V): 15A
• Breaker Size (220V): 15A

CERTIFICATIONS / QUALIFICATIONS CE

• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
