SGM P-2

Projecteur architectural à LEDs, 18 x 10W LEDs RGBW, angle d'ouverture 15° ou 21° ou 43°, DMX512, IP65

Descriptions détaillées

LED Wash Light

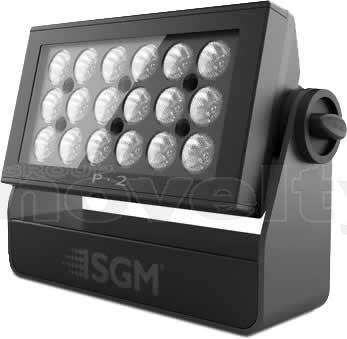

Based on the groundbreaking P-5 technology, the IP65 rated P-2 comes in a very small and robust chassis weighing only 6.1 kilos/13.4 lbs.

Taking it a step further, the 18 lenses in P-2 are divided into 3 individually controllable segments with RGBW colors. So implementing the P-2 in your light design generates wide-ranging colour and effect combinations.

The P-2 advantages include:
  • High performance color LED fixture with low power consumption

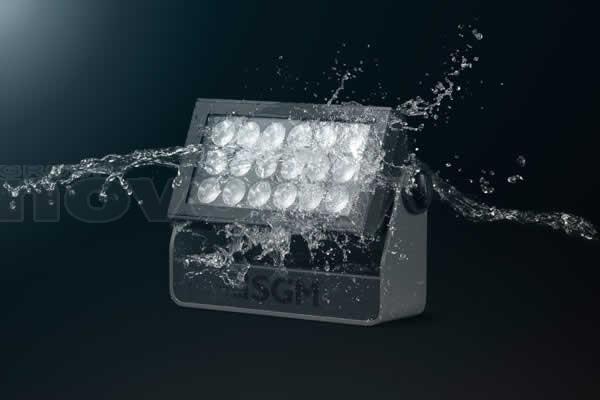

  • IP65 rating
  • Lightweight construction
  • Individually controllable segments
  • True LED alternative to traditional wash lights
  • User-friendly setup via simple control button and OLED display

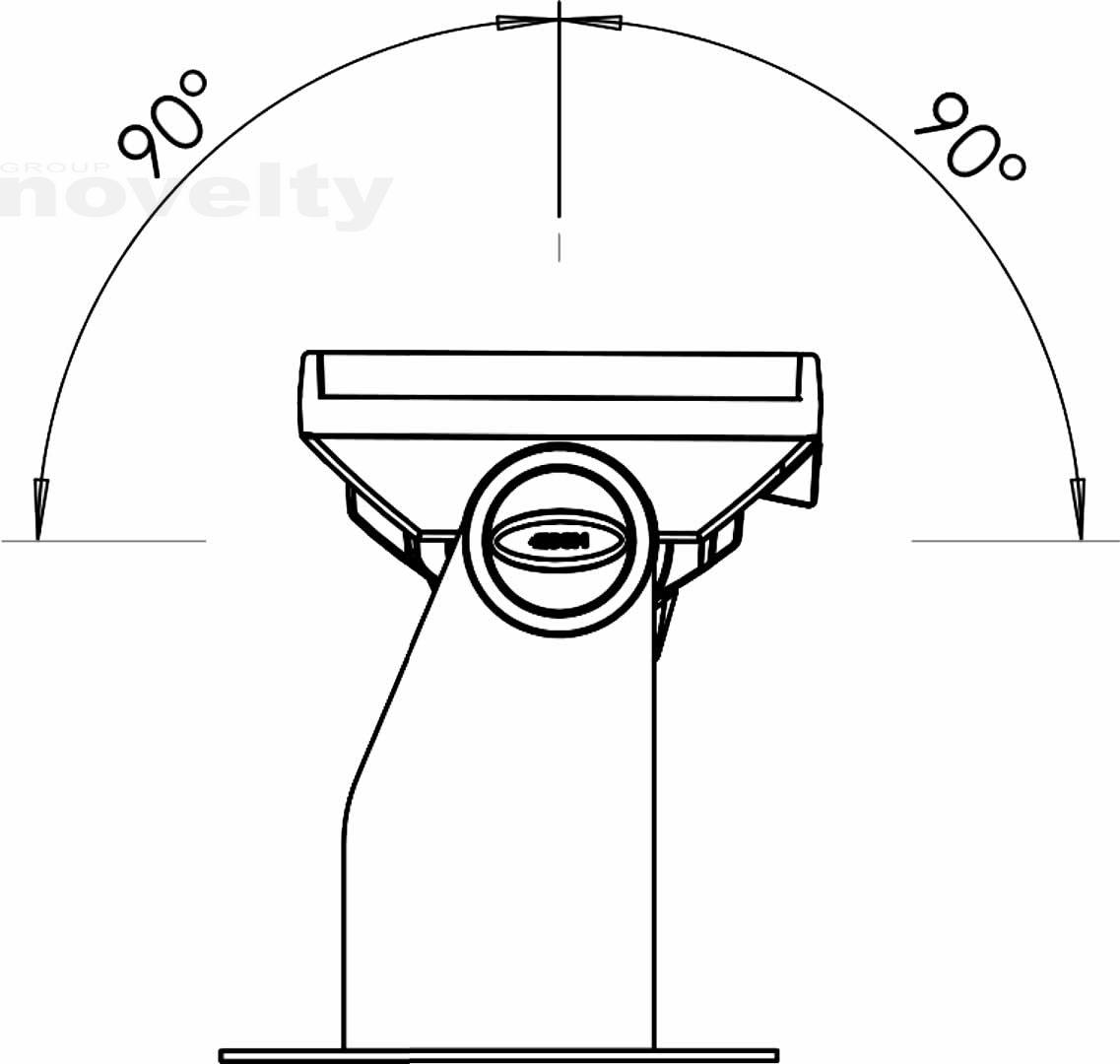

  • Numerous mounting and position options combined with low weight
Containing 18 high power 10W RGBW LEDs, P-2 has a staggering light output of 10,100 lumen – 1,656 lumen per kilo - and an efficacy of 51 lm/W. With an unprecedented small physical footprint for this type of product, the extremely compact unit ensures easy and quick setup.

The P-2 offers a variation of beam angles with 15°, 21° and 43° interchangeable lenses.
Informations
Propriétés techniques
  • Consommation électrique : 275 W
  • Dimensions en flight-case (X4) : … x … x … cm

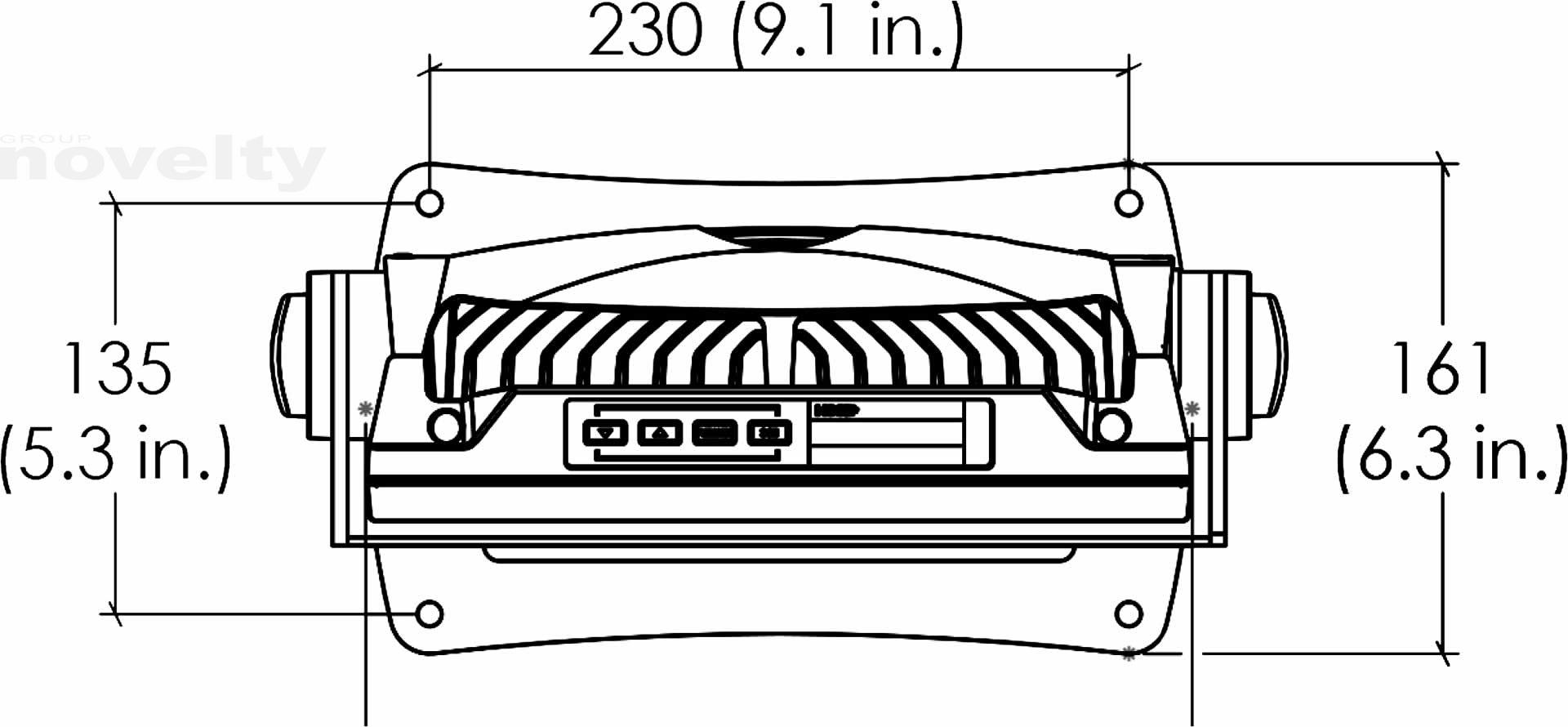

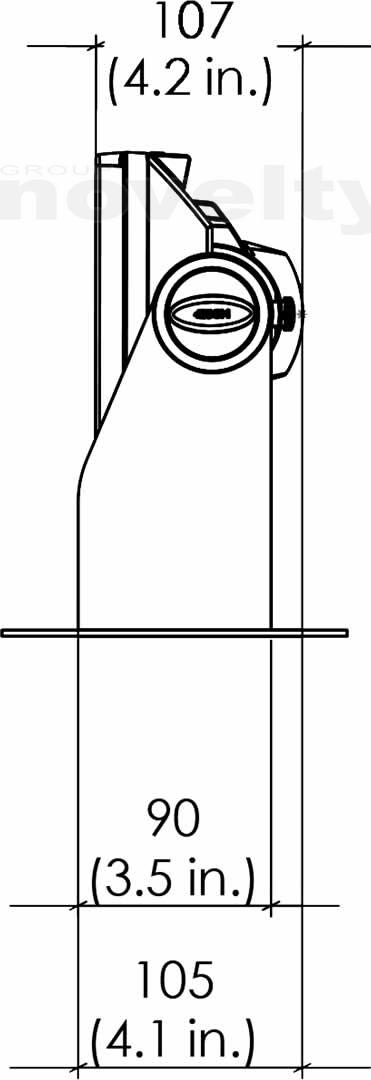

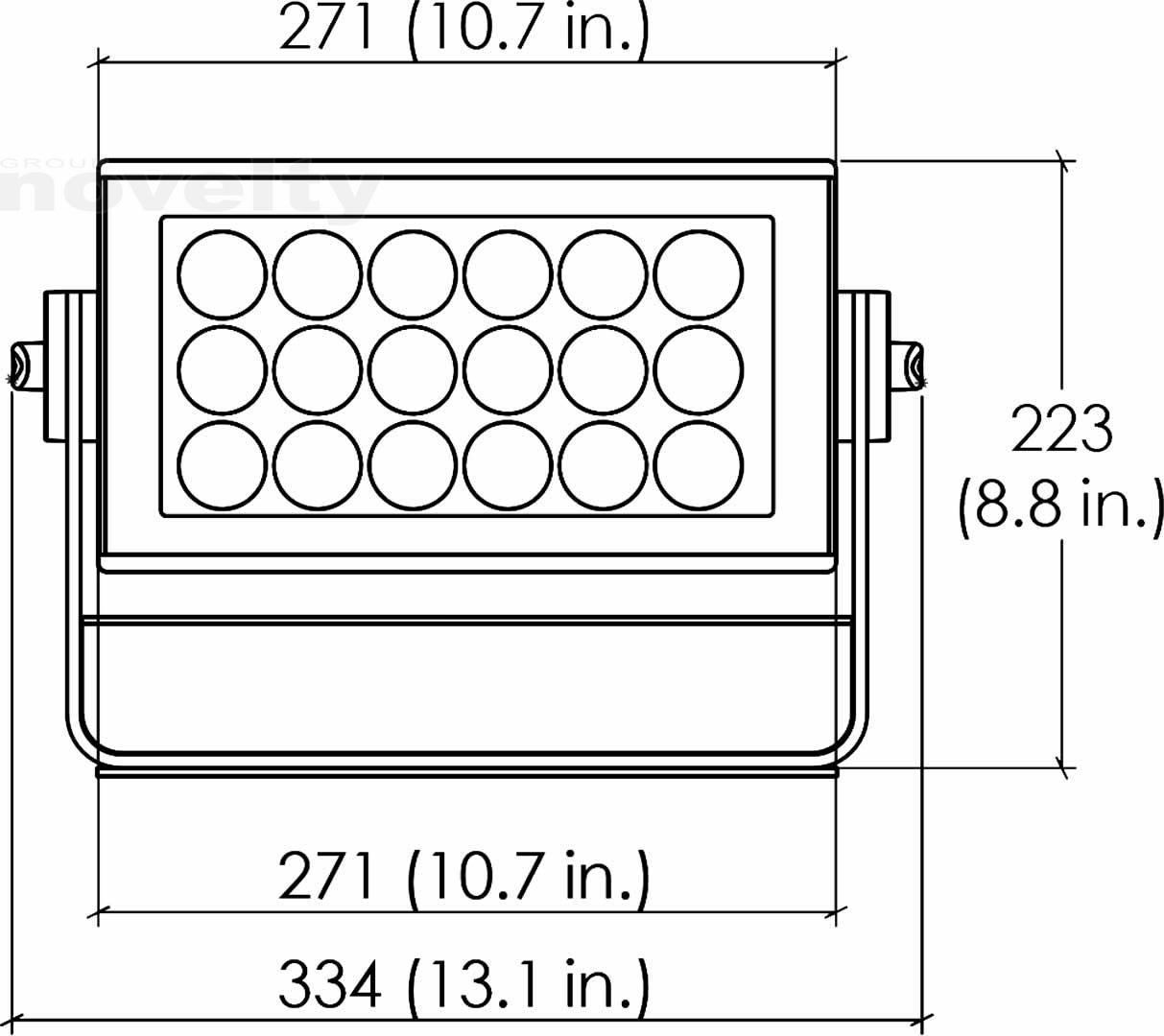

  • Dimensions unitaires : 334 x x223 x 161 mm
  • Poids en flight-case (X4) : … kg
  • Poids unitaire : 6,1 kg
