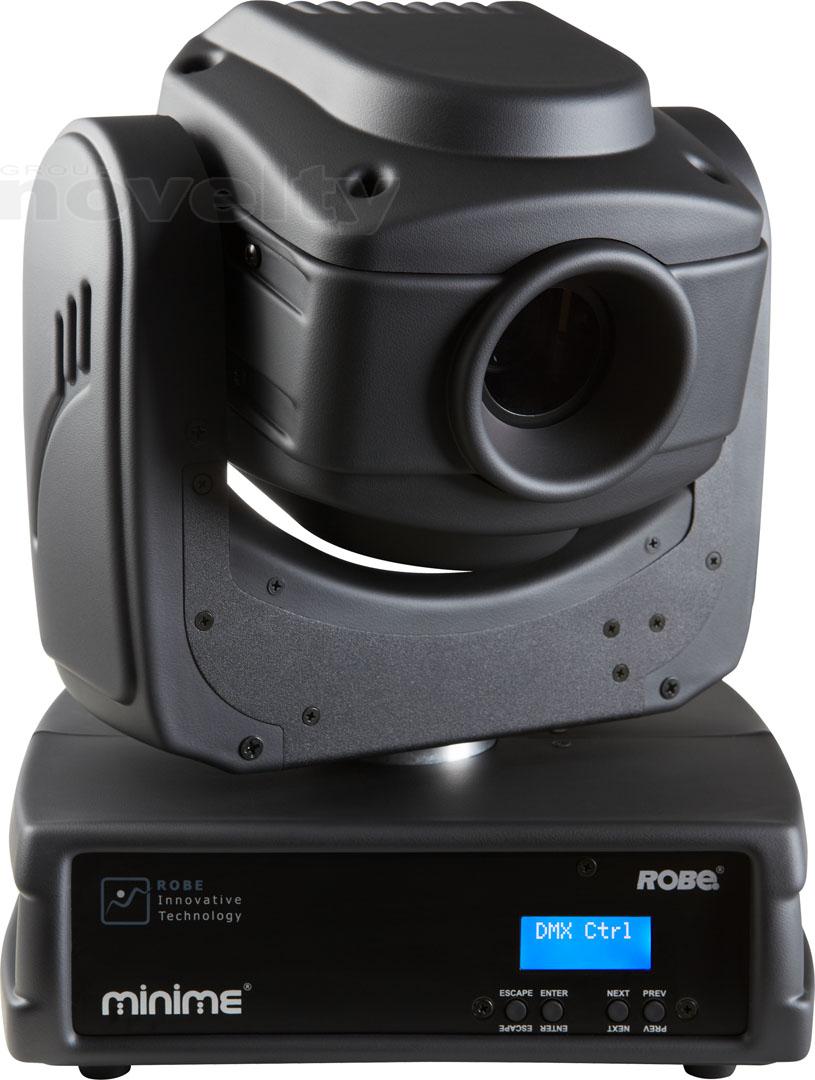

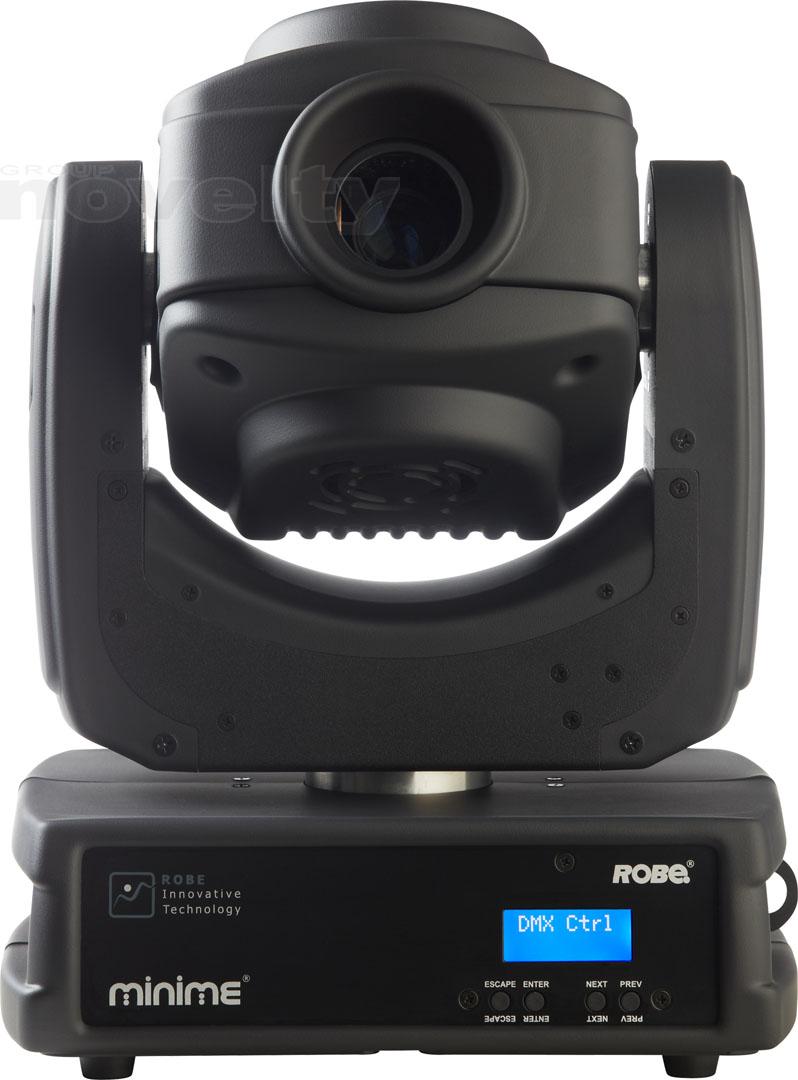

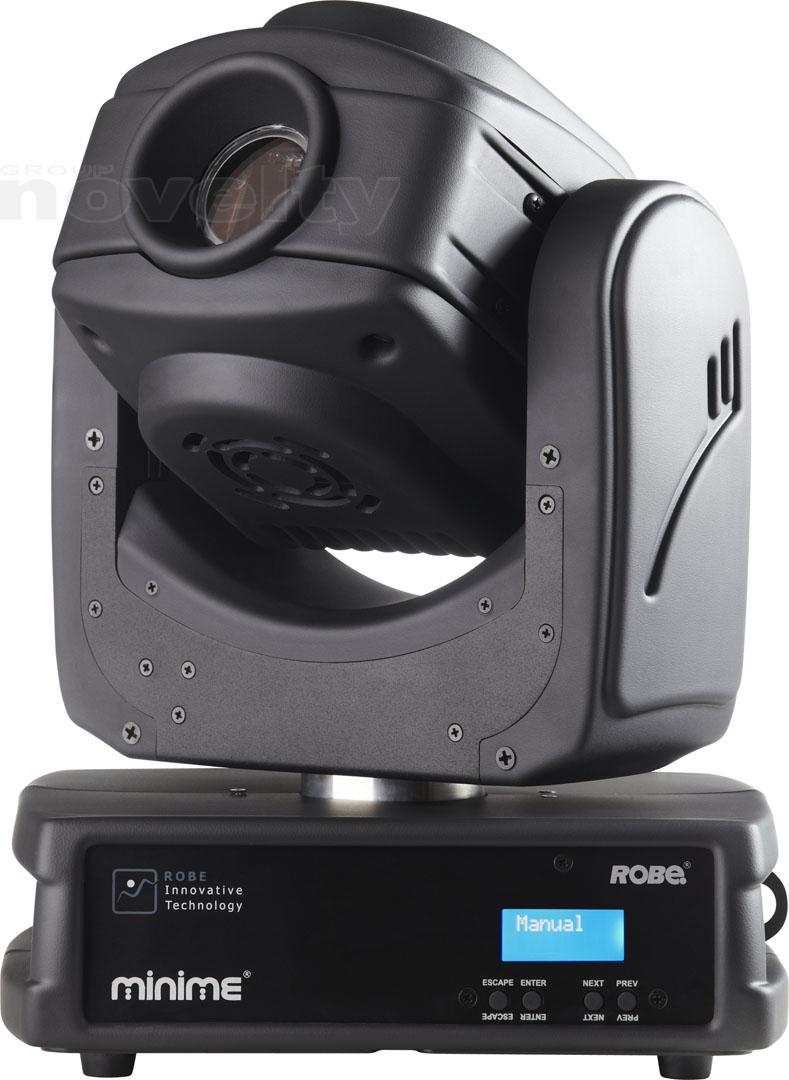

Robe MiniMe

Descriptions détaillées

SOURCE

• Light source type: RGB LED device
• Lifetime: 20.000 hours

PROJECTOR SPECIFICATION

• Light output: Comparable with 2500 ANSI lumen lamp projectors
• Aspect ratio: 16:10
• Resolution: WXGA (1280x800)
• Beam angle: 16°
• Throw ratio: 3.5:1
• Contrast ratio: 700:1
• Display colours: 16.7 million colours

DYNAMIC EFFECTS

• Colour mixing mode RGB/CMY
• Colour effect wheel with wide range of in-built effects (colour transitionsand cross-fades, multiple colour images, rainbow effects)
• Upload and projection of custom artwork, still photographs and videos from USB memory stick
• Digital gobo wheel with gobos, images and videos
• Gobo rotation and indexing
• Video speed control
• Live input via external High Defenition Multimedia Interface
• Effect wheel with wide range of graphic effects (Kaleidoscopic effect, fish eye, iris, zoom, swirl effect, pixelation effect, cross-stitching, posterization, and more)
• Effect speed control
• Horizontal/Vertical keystoning
• Iris: Digital
• Motorized focus
• Pre-programmed random strobe & pulse effects
• Dimmer: 0 - 100%

CONTROL AND PROGRAMMING

• Setting & Addressing: two-row LCD display & 4 control buttons
• Protocols: USITT DMX-512, RDM, ArtNet, sACN
• Wireless CRMX™ technology from Lumen Radio: On request
• DMX Protocol modes: 1
• Control channels: 24
• Stand-alone operation

MOVEMENT

• Pan movement: 450°
• Tilt movement: 270°
• Controllable speed of Pan/Tilt movement

HARDWARE

• Raspberry Pi Model B 512 MB RAM

OPERATION SYSTEM

• Linux OS

GRAPHIC ENGINE?

THERMAL SPECIFICATION

• Maximum ambient temperature: 40°C (104°F)
• Maximum surface temperature: 60°C (140°F)
• Minimum operating temperature: 0°C (32°F)

ELECTRICAL SPECIFICATION AND CONNECTIONS

• Power supply: Electronic auto-ranging
• Input voltage range: 100-240 V, 50/60 Hz
• Power consumption: 90 W at 230 V / 50Hz
• Power in/out connector: Neutrik powerCON in/out
• DMX and RDM data in/out: Locking 5-pin XLR
• Ethernet port in/out: RJ45
• 2x USB 2.0 connector (series A)
• External video input 1x High Definition Multimedia Interface (HDMI)

APPROVALS

• CE Compliant
• cETLus Compliant

RIGGING

• Mounting points: 1 pair of ¼-turn locks
• 1 x Omega bracket with ¼-turn quick locks
• Universal operating position
• Safety cable attachment point
