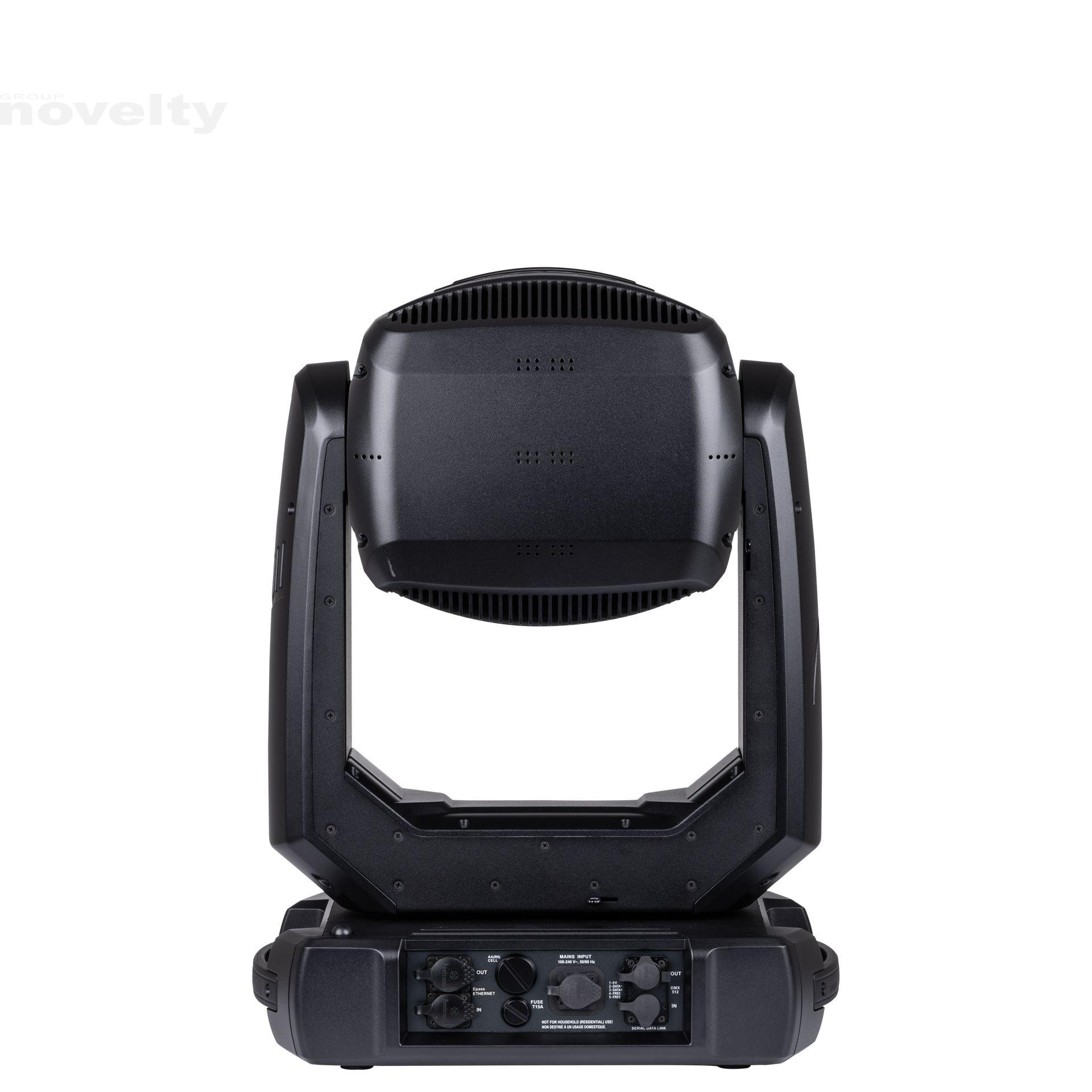

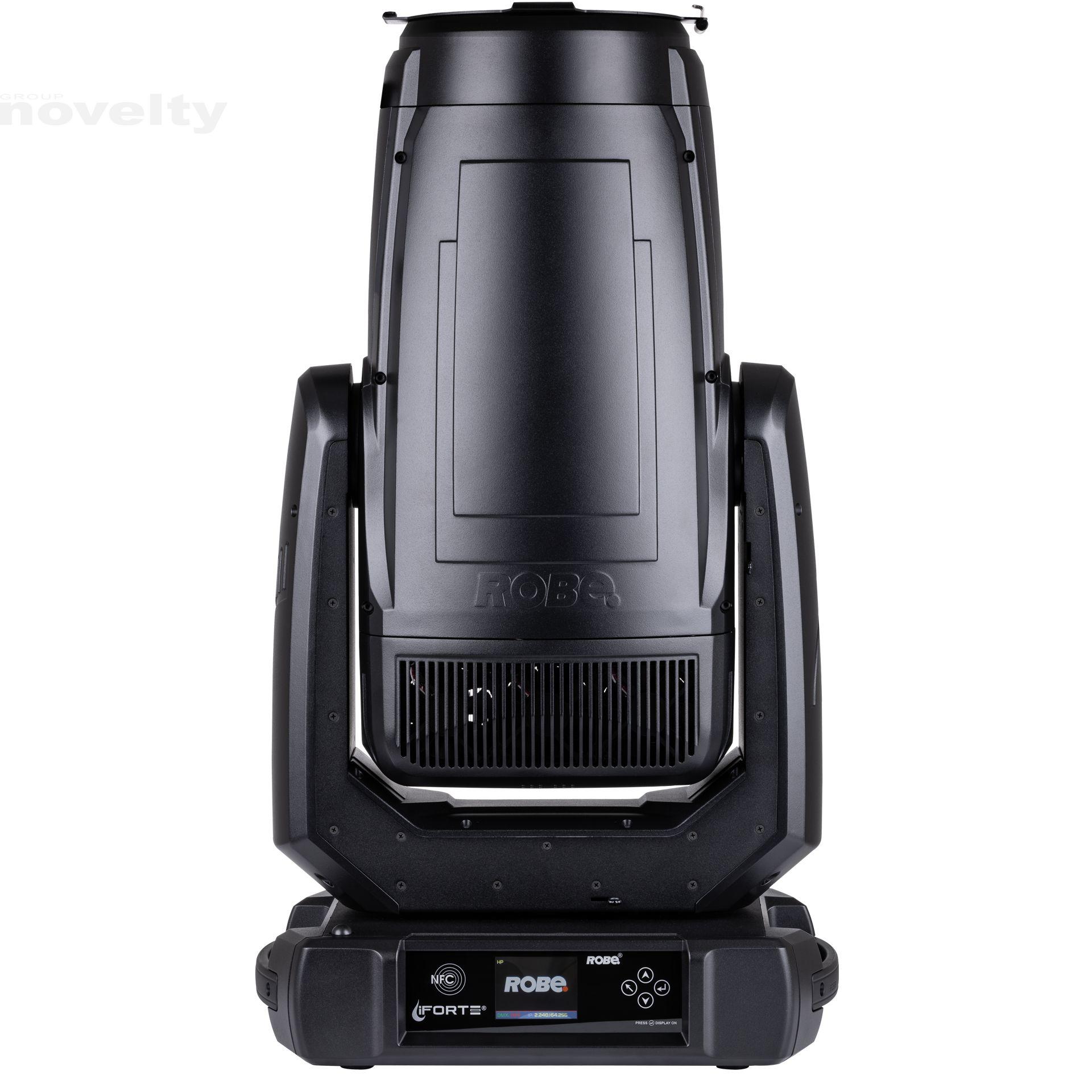

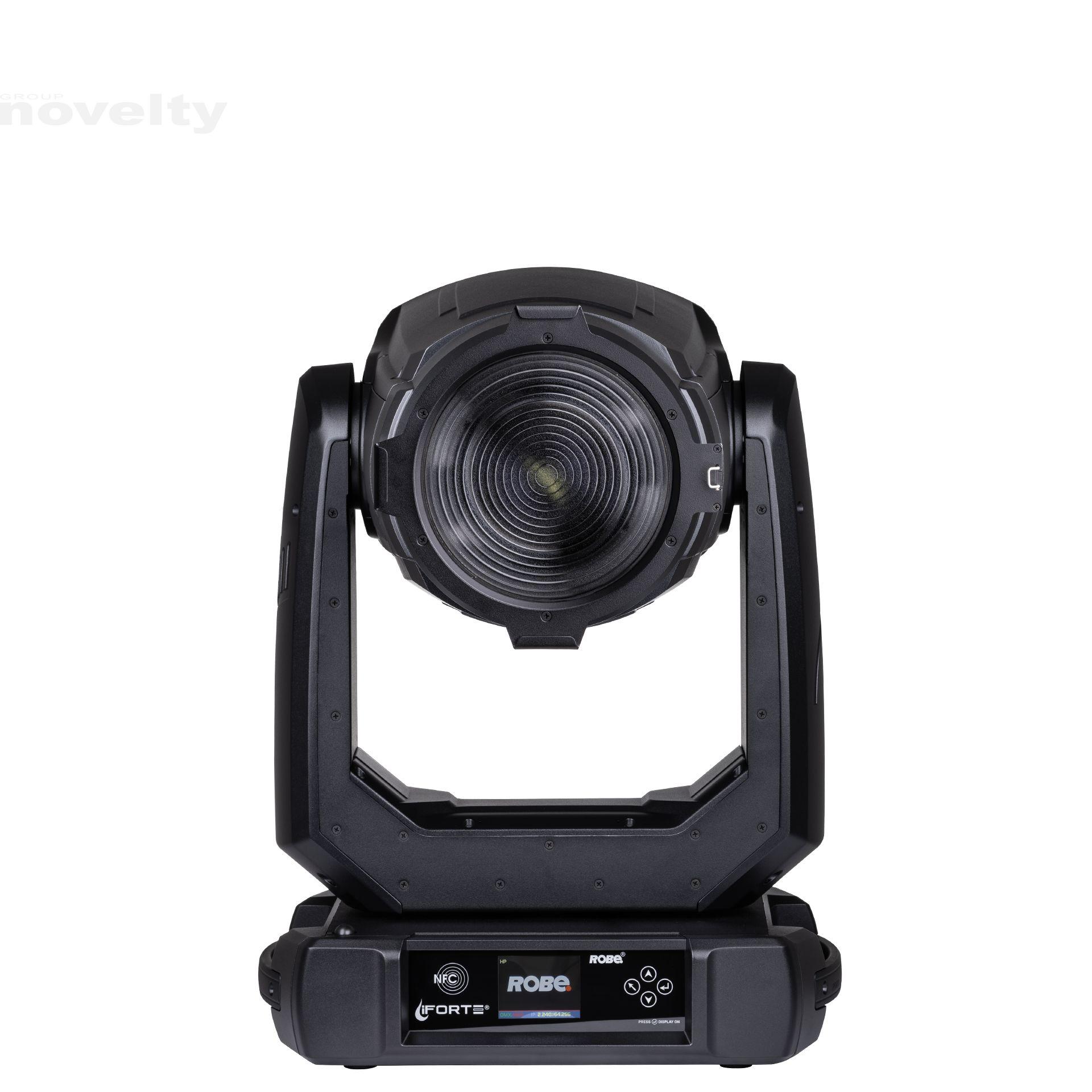

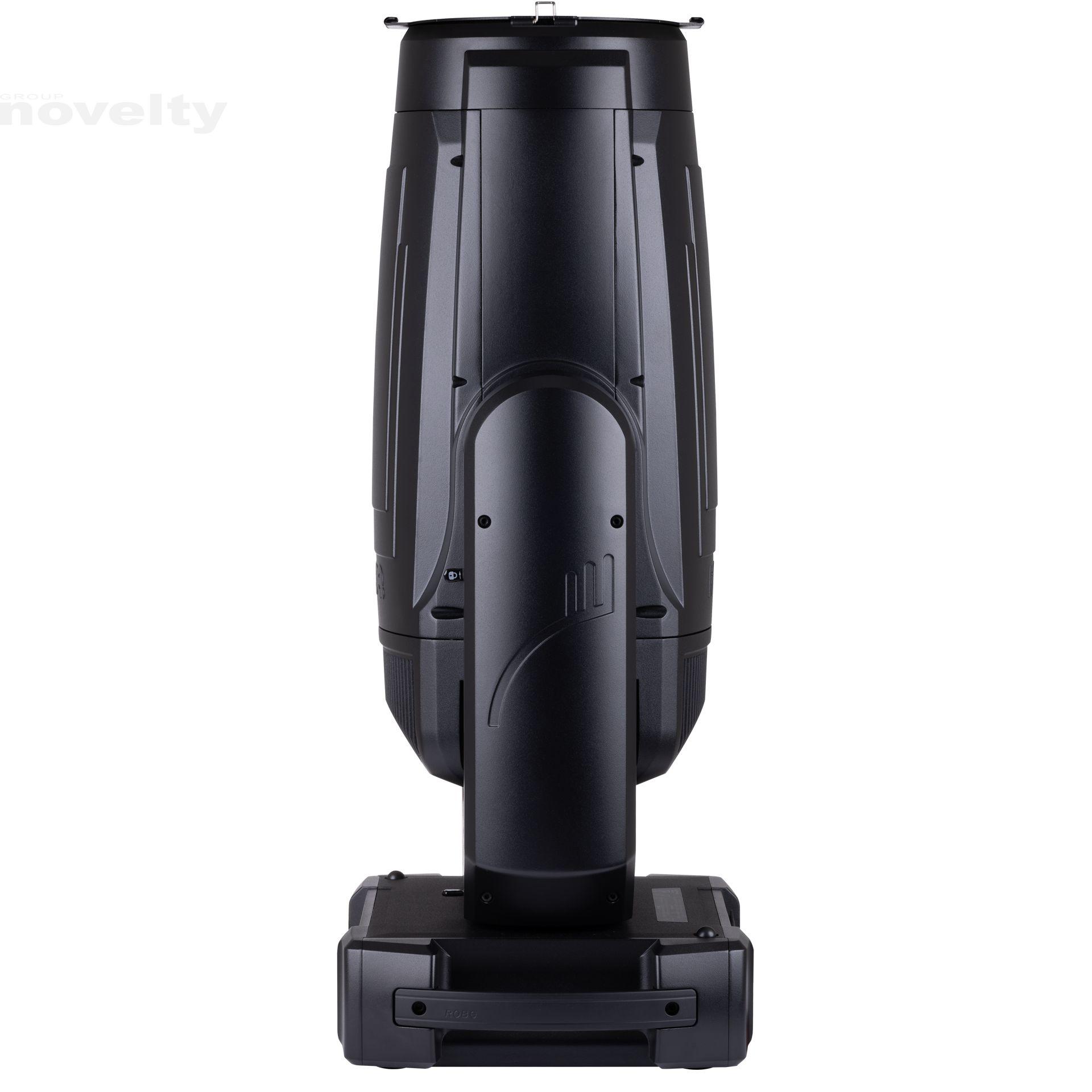

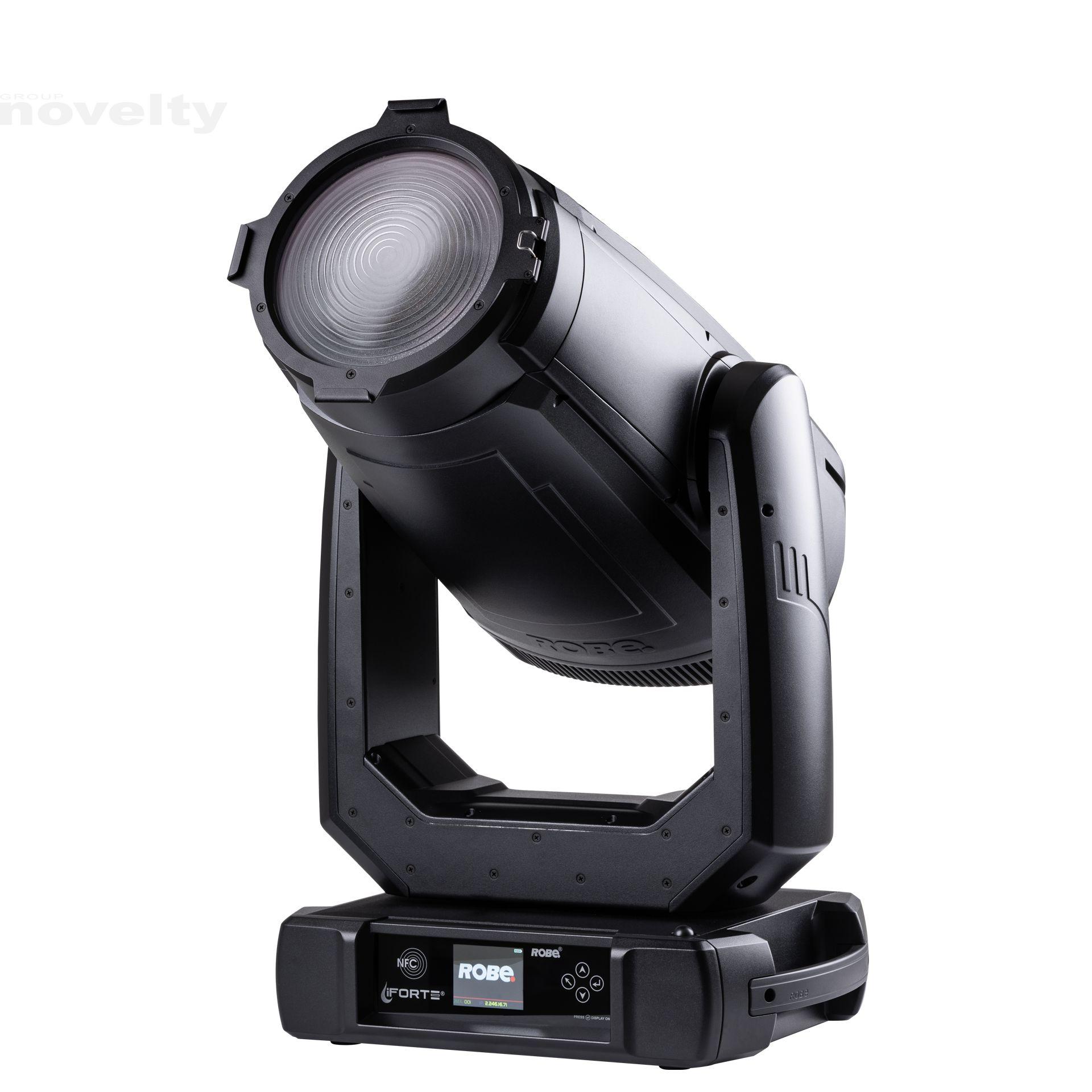

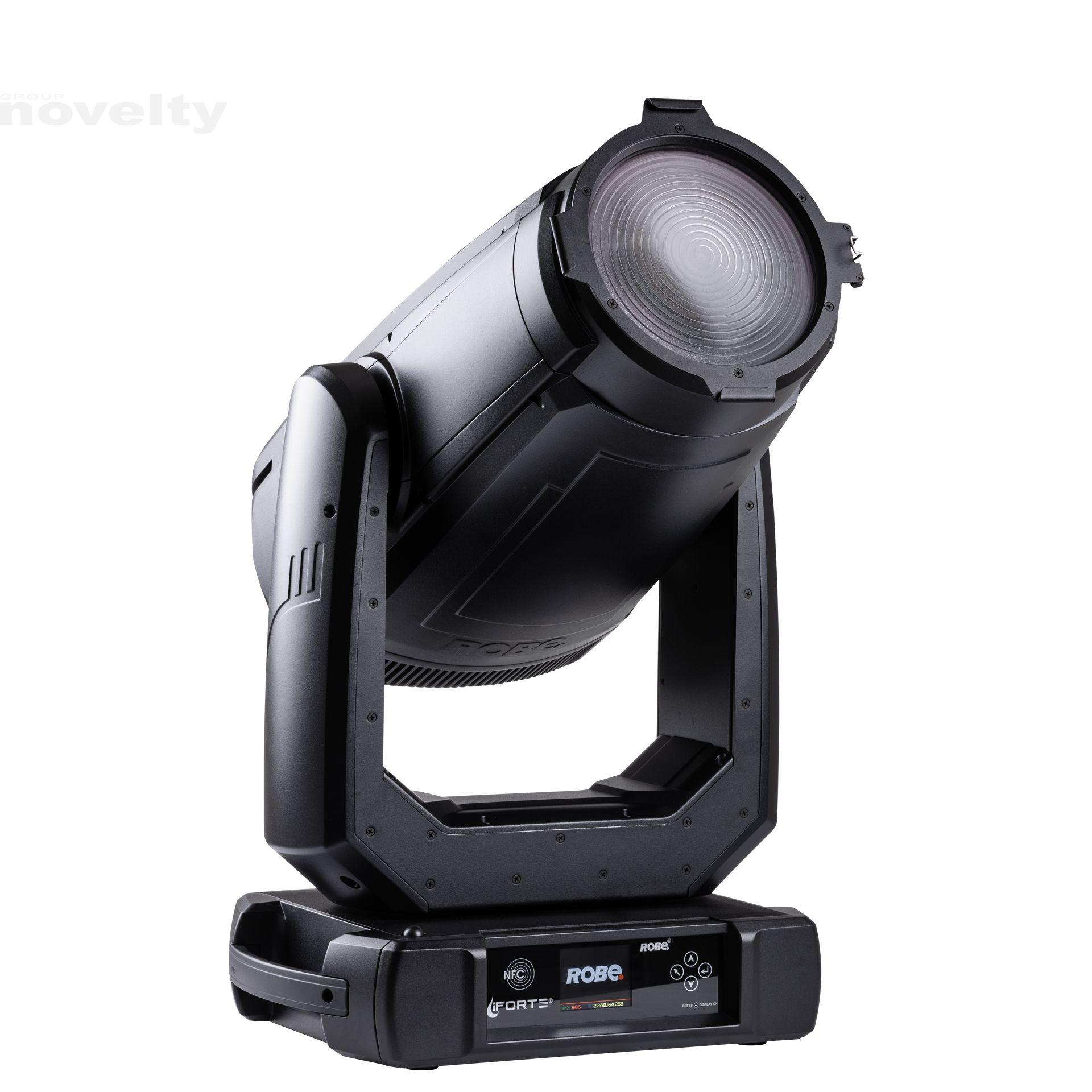

Robe iFORTE Fresnel

Descriptions détaillées

Spécifications Techniques

Source:

• Light source type: iSE-TE™ 1000W XP White LED Engine (Patented):
  • Fixture total lumen output:
    • 40.500 lm (integrating sphere)
    • 33.033 lm (goniophotometer)
  • LED Engine output: 90.200 lm
  • XP - Xtra Performance Engine for maximum light output and optimal colour characteristics
  • Colour temperature output: 6.700 K
  • CRI: 70, remotely selectable filters for CRI 80 and CRI
  • Illuminance: 41.000 lx @ 5 m
• Light source type: iSE-TE™ 1000W HCF White LED Engine (Patented):
  • HCF - High Colour Fidelity Engine for the best light quality and colour rendition
  • LED Engine output: 55.000 lm
  • Fixture total lumen output:
    • 27.540 lm (integrating sphere)
    • 22.462 lm (goniophotometer)
  • Colour temperature output: 6.000K
  • CRI: 96, TLCI: 97, TM-30-18 Rf: 92, TM-30-18 Rg: 99
  • Illuminance: 27.880 lx @ 5 m
• LED life expectancy: min. 50.000 hours
• Typical lumen maintenance: L70/B50 @ 50.000 hours
• Light source warranty: 4 years or 20.000 hours

Optical system:

• Robe’s proprietary optical design
• High-efficiency 13-lens zoom optical system, ratio: 10:1
• Zoom range: 6° - 61°
• Output lens diameter: 200 mm
• parCoat™ (particle resistant coating) unique hydrophobic and oleophobic coating helps prevent water, dirt, dust, haze and smoke from adhering to the output lens
• F2L™ Fresnel-lens system, comprising two lenses engineered with a smooth outer surface to eliminate the debris accumulation commonly found on outdoor Fresnel lenses

Dynamic Effects and Features:

• Cyan: 0 - 100%
• Magenta: 0 - 100%
• Yellow: 0 - 100%
• Variable CTO: 3.000K - 6.700K
• ChromaTint™ - Patented plus / minus green correction function
• Colour Wheel 1: 5 fixed dichroic colours+ white
• Colour Wheel 2: 5 fixed dichroic colours + white
• Framing shutters: Patented Plano4™ framing shutters module with 4 individually positionable blades plus rotation of the complete frame system + - 60°
• MagFrost™ - Magnetic paddle fast change system providing exchangeable frosts containing as standard light 5° and medium 10° frost filte
• RotaScrim™ - Internal Scrim module with graduated filter position control for asymmetrical style lighting of drap and unwanted hotspot removal from scenery. The entire module can be rotated +/- 180°. (Patented)
• Motorised zoom
• Edge colour correction
• Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects
• High resolution electronic dimming: 0 - 100% • L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black • Extremely quiet operation suitable for all types of production in Theatre and TV
• Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 1
• AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical elements. This increases the overall performance, light quality and time between routine cleaning and maintenance
• POLAR+™ for power saving and instant operation in extremely cold weather conditions

Control and programming:

• Setting & Addressing: ROBE Navigation System 2 (RNS2)
• Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding, NFC app controll
• Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
• REAP™ - Robe Ethernet Access Portal
• Wireless CRMX™ technology from Lumen Radio
• Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, automatically maintain network connectivity
• RAINS™ (Robe Automatic Ingress Neutralization System) manages humidity, temperature and pressure control using an active monitoring system to automatically remove any moisture detected within the fixture and provid constant monitoring to ensure peak performance
• DMX Protocol modes: 1
• Control channels: 35
• Pan & Tilt resolution: 16 bit
• CMY & CTO: 8 bit
• + - Green correction: 8 bit
• Colour wheel positioning: 16 bit
• Framing shutters module movement & rotation: 16 bit
• Internal scrim module movement & rotation: 8 bit
• Iris: 16 bit • Frost: 8 bit • Zoom: 16 bit
• Edge colour correction: 8 bit
• Dimmer: 16 bit (internal 18 bit)

Movement:

• Pan movement: 540°
• Tilt movement: 270°
• Movement control: Standard and Speed
• Controllable speed of Pan & Tilt movement
• EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
• Automatic Pan & Tilt position correction
• MAPS™ - Motionless absolute positioning system for Pan and Tilt (Patented)

Framing shutters system:

• Patented Plano4™ framing shutters module
• Shutters: 4 Blades, each with separate movement and +- 25° rotation control
• Movement: Smooth with variable speed, ultra-fast for creating mid-air effects
• Rotation: +- 60° of the complete framing system

Internal Scrim:

• Patented RotaScrim™ internal Scrim module:
  • Graduated filter position control
• Rotation: +/- 180° of the entire module

Noise Levels:

• Maximum ambient temperature: 50°C (122°F)
• Maximum surface temperature: 80°C (176°F)
• Minimum operating temperature: -50°C (-58°F)
• Total heat dissipation: max. 3200 BTU/h (calculated)
