PIONEER DJM-A9

Descriptions détaillées

Main Features

• MIDI Control : Full assignable MIDI controls
• PRO DJ LINK
• Booth EQ
• P-Lock Fader Caps
• Auto Standby
• DVS Control :
  • rekordbox
  • Serato DJ Pro (Need to buy a license or subscription.)
• Software System Requirements
  • Visit rekordbox.com for its specifications.
  • Visit serato.com for its specifications.
• Bluetooth Audio Input
  • Wireless system : Bluetooth Ver.5.0
  • Maximum transmission distance : Approximately 10 m in unobstructed circumstances (Transmission distances are a guideline.)
  • Frequency band used : 2.4 GHz
  • Modulation method : FH-SS (Frequency Hopping Spread Spectrum)
  • Compatible Codecs : SBC, AAC
• Wireless LAN
  • Supported standards : IEEE 802.11 a/b/g/n/ac
  • Frequency band used : 2.4 GHz / 5 GHz
• Accessories
  • DJM-A9
  • Power Cord
  • Warranty (for some regions)
  • Quick Start Guide
  • Precautions for Use

Specifications

• Dimensions (W x D x H) :
  • 407.4 x 107.9 x 458.3 mm
  • 407.4 x 140.7 x 458.3 mm (when the wireless antenna stands upright)

• Sampling Rate : 96 kHz
• CH input A/D Converter : 32 bit
• Weight : 10.2 kg
• MASTER, BOOTH, REC, SEND D/A Converter : 32 bit
• S/N Ratio Line : 105 dB
• S/N Ratio Phono : 88 dB
• S/N Ratio Mic : 79 dB
• Distortion : < 0.005 % (LINE)

Channels

• EQ/ISO : 3 band
• EQ Range : Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB dB

Performance Control

• Channels : 4
• MULTI I/O : USB (Type A)
• Sound Color FX :
  • Space
  • Dub Echo
  • Sweep
  • Noise
  • Crush
  • Filter
• Beat FX
  • Delay
  • Echo
  • Ping Pong
  • Spiral
  • Helix
  • Reverb
  • Flanger
  • Phaser
  • Filter
  • Triplet Filter
  • Trans
  • Roll
  • Triplet Roll
  • Mobius
• Screen Display
• X-PAD
• rekordbox Quantize

Crossfader

• Crossfader Type : Magvel Fader
• Curve Assignable
• Fader Curve : 3

Mic

• Phantom power
• Microphone Effects
  • Echo
  • Pitch
  • Megaphone
  • Reverb
• Push-to-talk function
• Mic Connection
  • XLR / 1/4-inch Combo Jack
  • 1/4-inch TRS Jack
• Mic EQ : 2 band
• Mic EQ Range : -12 dB ~ +12 dB
• Talkover : Dedicated button
• Talkover Attenuator

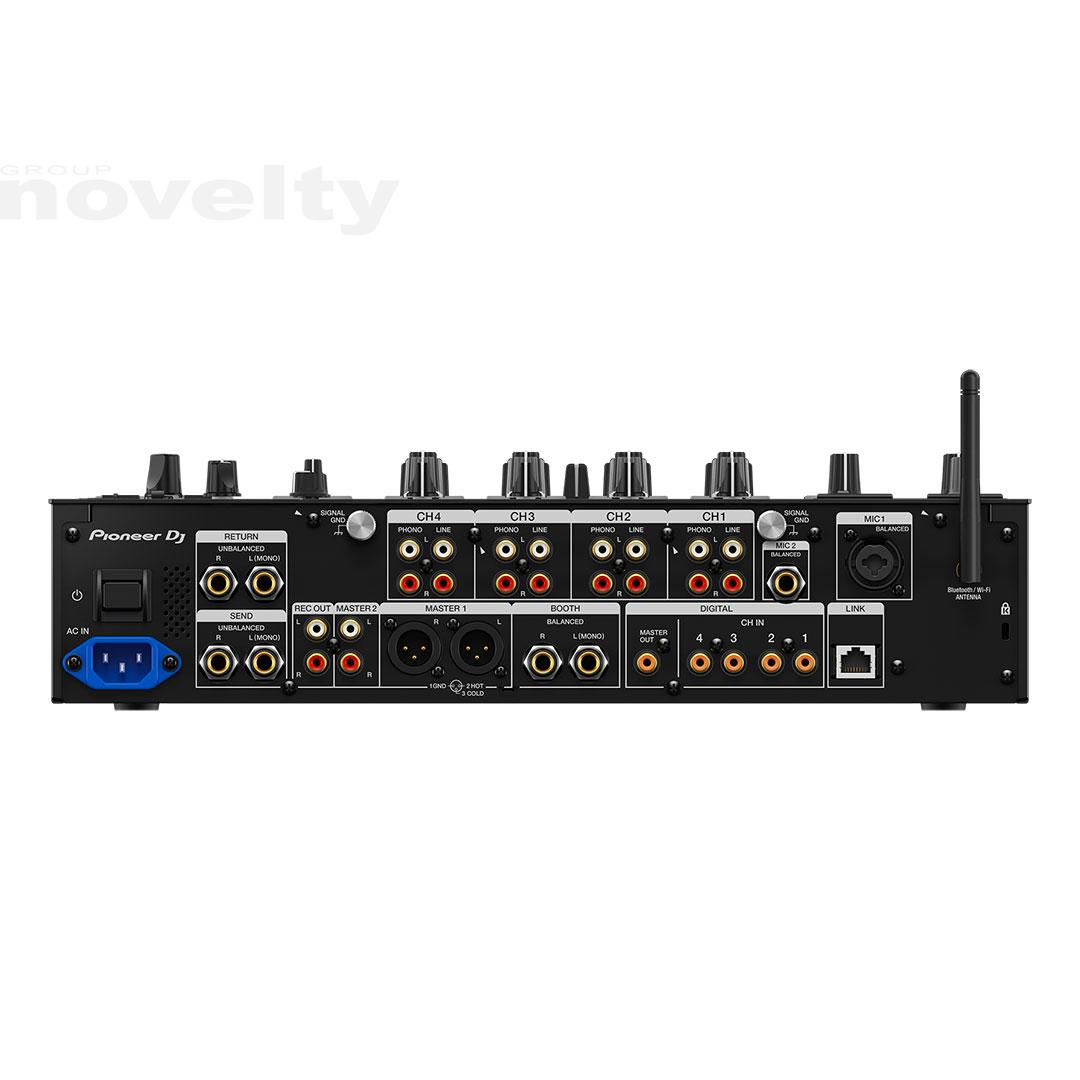

Terminals

• Inputs
  • 4 DIGITAL (Coaxial)
  • 4 LINE (RCA)
  • 4 PHONO (RCA)
• Send/Return
  • 1 SEND (1/4-inch TS jack)
  • 1 RETURN (1/4-inch TS jack)
• LAN : 1
• Outputs
  • 1 MASTER (XLR, RCA)
  • 1 BOOTH (1/4 inch TRS Jack)
  • 2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
  • 1 REC OUT (RCA)
  • 1 DIGITAL (Coaxial)
• USB
  • 1 USB A port
  • 2 USB B ports
  • 2 USB C ports
