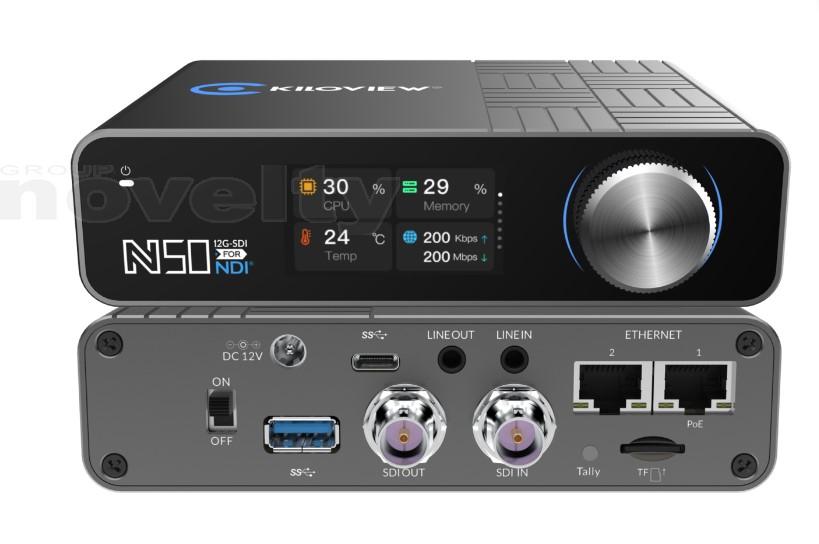

Kiloview N50

Descriptions détaillées

• Video input : 1*4Kp60 12G-SDI 2.0
• Video output : 1*4Kp60 12G-SDI 2.0?Loop or decoding output?
• Audio port :
  • 1*3.5mm Line in
  • 1*3.5mm Line out
• Network :
  • 2*RJ45 1000Mbps Ethernet port
  • Ethernet 1 with PoE (IEEE 802.3AT, 24W Max)
• Video resolution :
  • Input: up to 3840x2160 60fps (4Kp60), lowest 720p50
  • Output (decoding or loop out): up to 3840x2160 60fps (4Kp60), lowest 720p50
• NDI® codec capacity : 1x NDI® HB/HX encoding or 1x NDI® HB/HX decoding
• NDI®CODEC feature :
  • SpeedHQ (NDI CODEC): SHQ0, SHQ2
  • ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
  • ISO MPEG-H Part 2: High-Efficiency Video Coding (HEVC)/ITU H.265
  • AVC (H.264): Baseline, Main, High, High10, High 4:2:2 up to 5.2 level
  • HEVC (H.265): Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier
• Audio encoding and decoding : NDI Audio; AAC-LC, Opus, G.711 a-Law/u-Law; other software expansion
• USB :
  • 1*USB3.0 (type A)
  • 1*USB3.0 (type C)

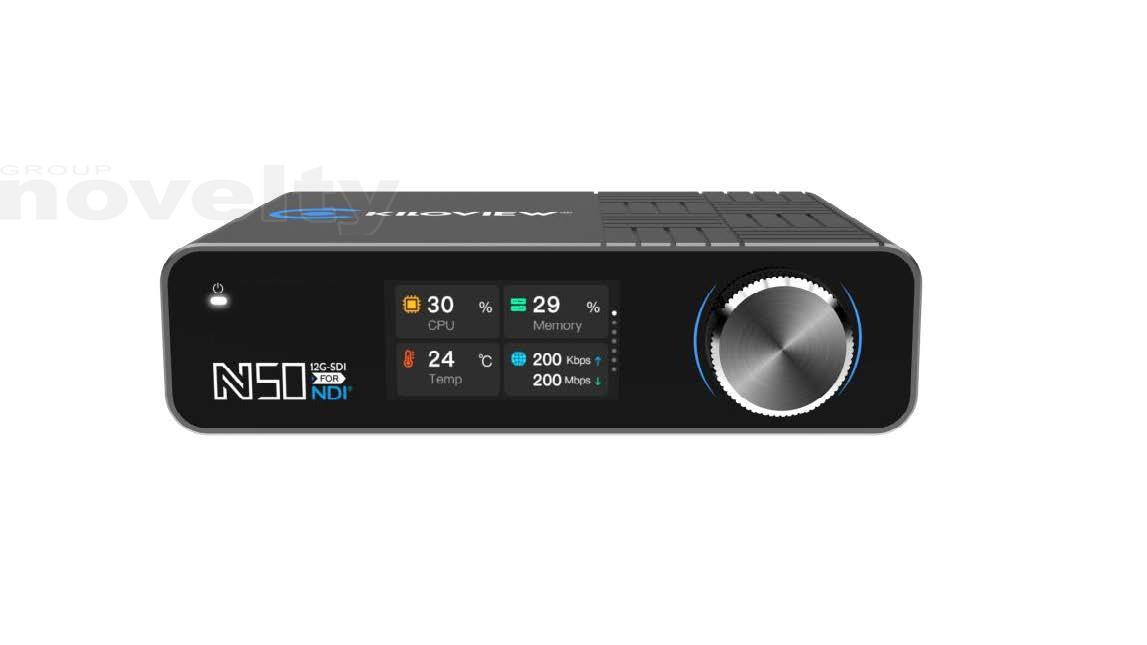

• Human-computer interaction : 1.96?LCD screen, KILOVIEW Magic Rotor
• TF storage : Support TF card for recording, capacity up to 2TB
• Tally : Built-in LCD panel available as front/rear Tally
• Power : DC 12V ?5.5/2.5?or PoE
• NDI : Support NDI HB, NDI HX 2 and NDI HX 3.
• Typical Bitrates :
  • SpeedHQ (NDI CODEC):
    • 4Kp60: 250Mbps, 1080p60: 132Mbps, 1080p30/1080i60: 112Mbps, 720p60: 105Mbps
    • 480i60: 62.5Mbps
  • AVC (H.264):
    • Adjustable from 1Mbpsto 120Mbps. >24Mbps (4Kp60); >10Mbps(1080p60).
  • HEVC (H.265):
    • Adjustable from 1Mbps to 120Mbps. >15Mbps (4Kp60); >6Mbps(1080p60).
• Recording :
  • TF card available for local storage to .mov filles.
  • Support remote recording with KILOVIEW Recorder System, ensuring reliable recording together with Kiloview Smart Recording technology (TF card required).
• Voice intercom : Support voice intercom by USB headset between devices directly, or with KILOVIEW Intercom server.
• PTZ :
  • Support PTZ control through USB to serial RS232/485/422;
  • or PTZ control over IP with different protocols, no extra cable required
• Management : Web UI and remote management with KILOVIEW KiloLink Server
• Firmware update : Firmware upload by Web UI and remote upgrade with KILOVIEW Kilolink Server
• Mounting : Support cold-shoe mounting and V-mounting
• Power Consumption : 16W Max
• Certificates : CE/ FCC/ROHS
• Dimension : 135.00*123.60*35.00mm
