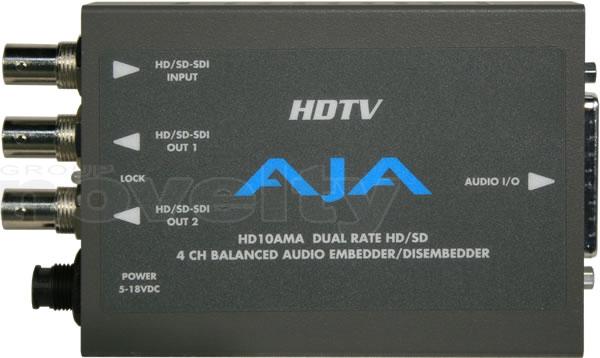

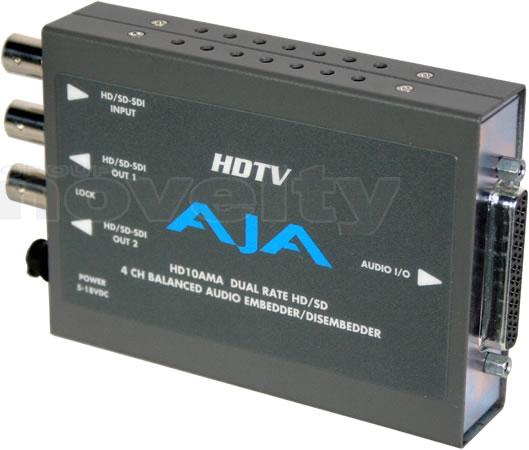

AJA HD10AMA

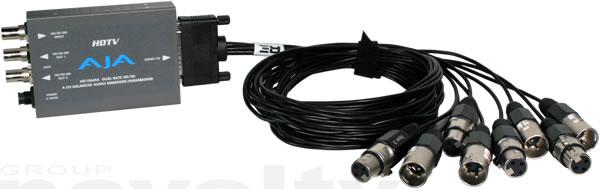

• The HD10AMA is a dual rate 4-channel analog audio Embedder/Disembedder. The Disembedder is always functional providing 4 outputs. The Embedder is user selectable, on a channel pair basis, to either "pass" input audio or embed input audio from the breakout cable. Analog audio levels are selectable. The HD10AMA automatically detects and configures to the input video standard.

Formats

• HD SMPTE 292/296M

• SD SMPTE 259M

• (Automatic Configuration)

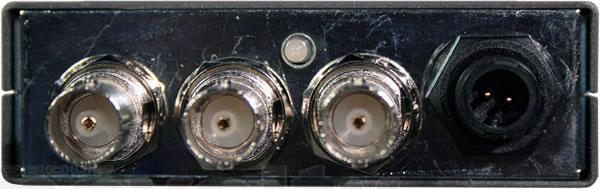

Video Input

• HD-SDI or SDI BNC

Video Outputs

• HD-SDI or SDI BNC x2

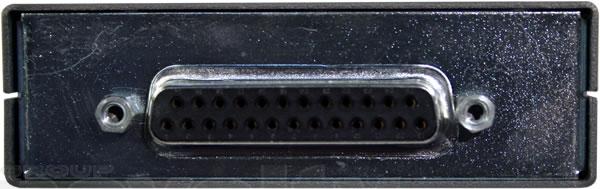

Audio Inputs

• 4 x Balanced Analog Audio, XLR

Audio Outputs

• 4 x Balanced Analog Audio, XLR

Audio Levels

• See "Output Level Selection Matrix" below

Audio Converters

• 24 bit

Embedded Audio

• SMPTE 272M/299M, 24 bit, 48KHz synchronous

User Controls

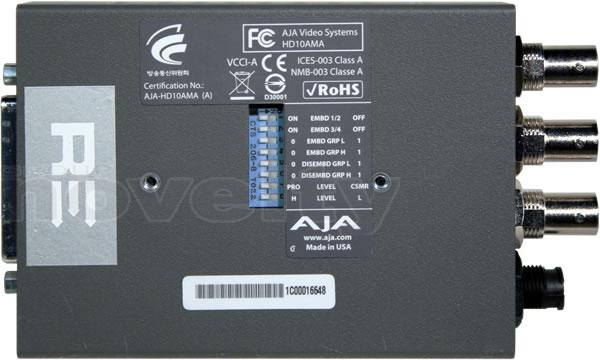

• External Dipswitch

• Embedder on/off, Ch pairs 1/2 - 3/4

• Input group select 1-4

• Output Group Select 1-4

• Audio Level: Pro/Consumer, High/Low

Power

• +5-18VDC, 5 watts. Power Supply Required (sold separately)
