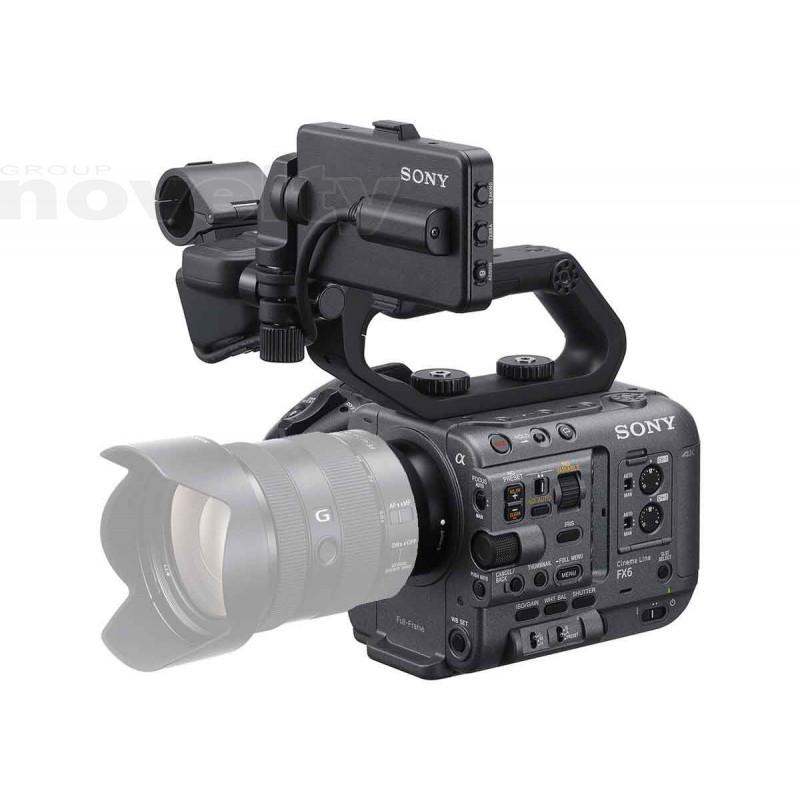

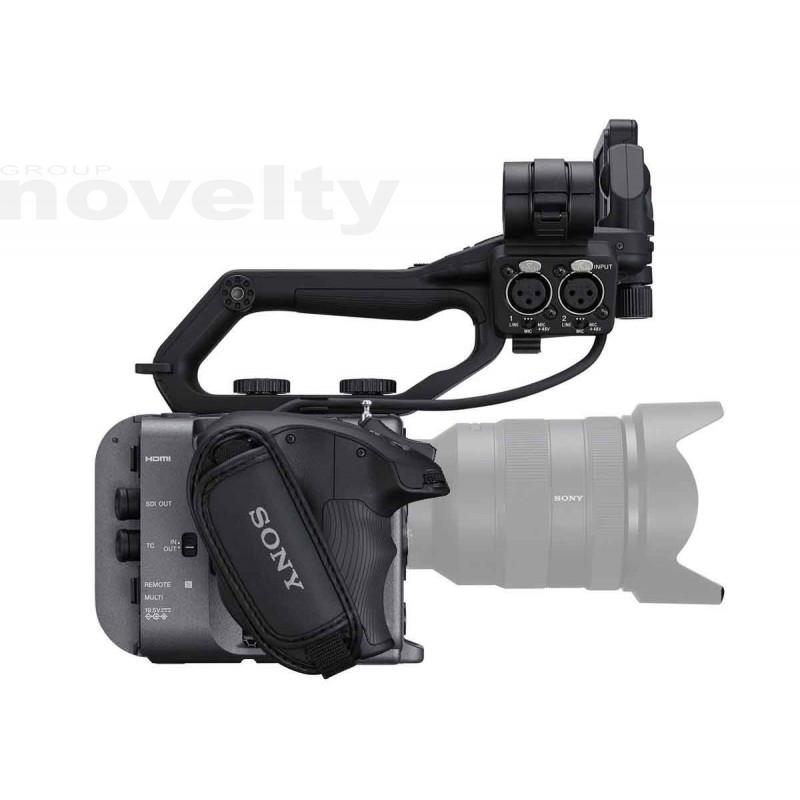

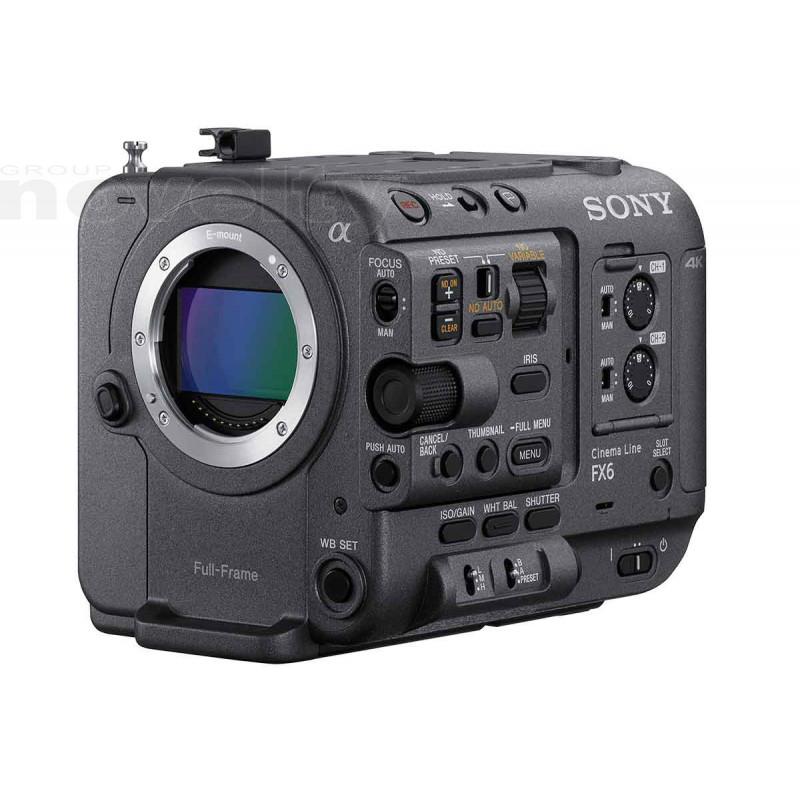

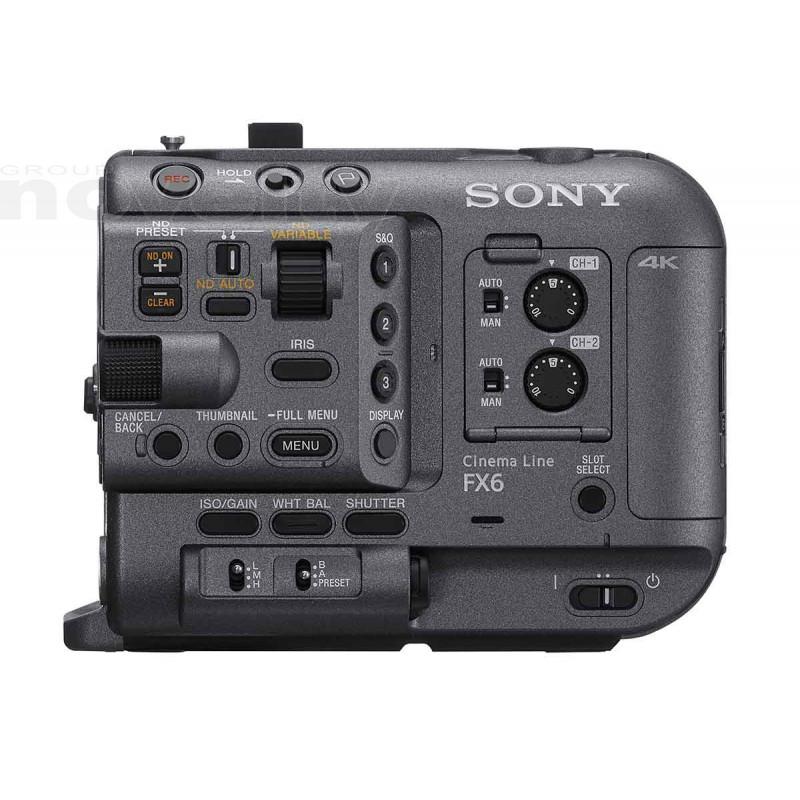

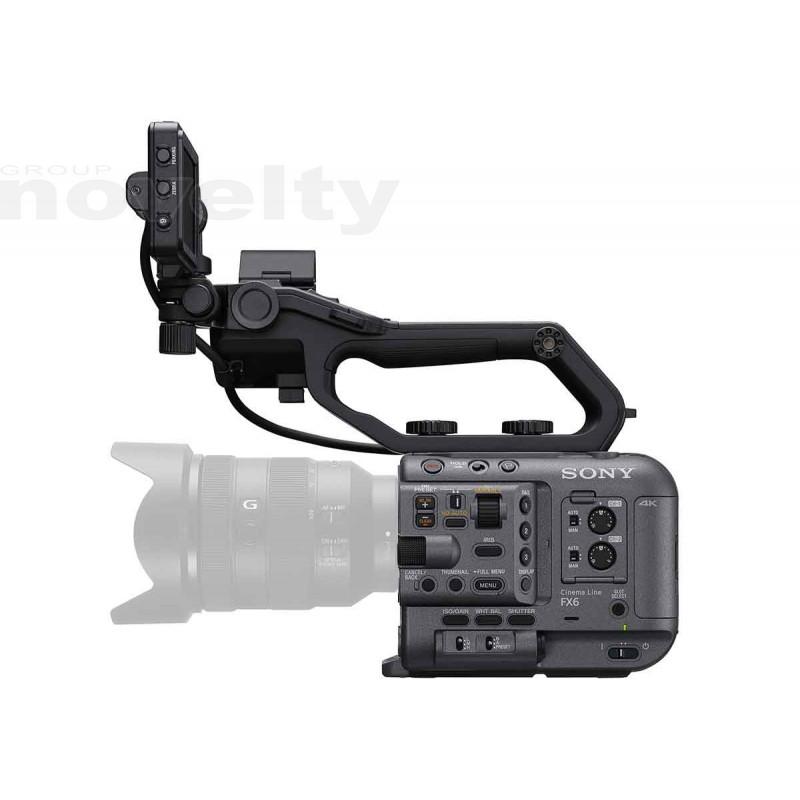

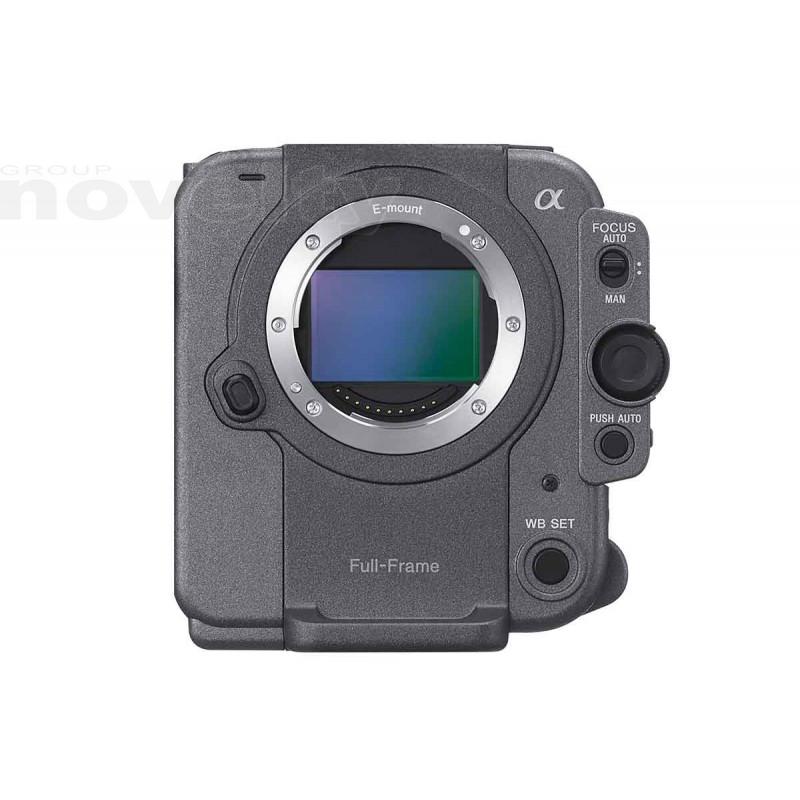

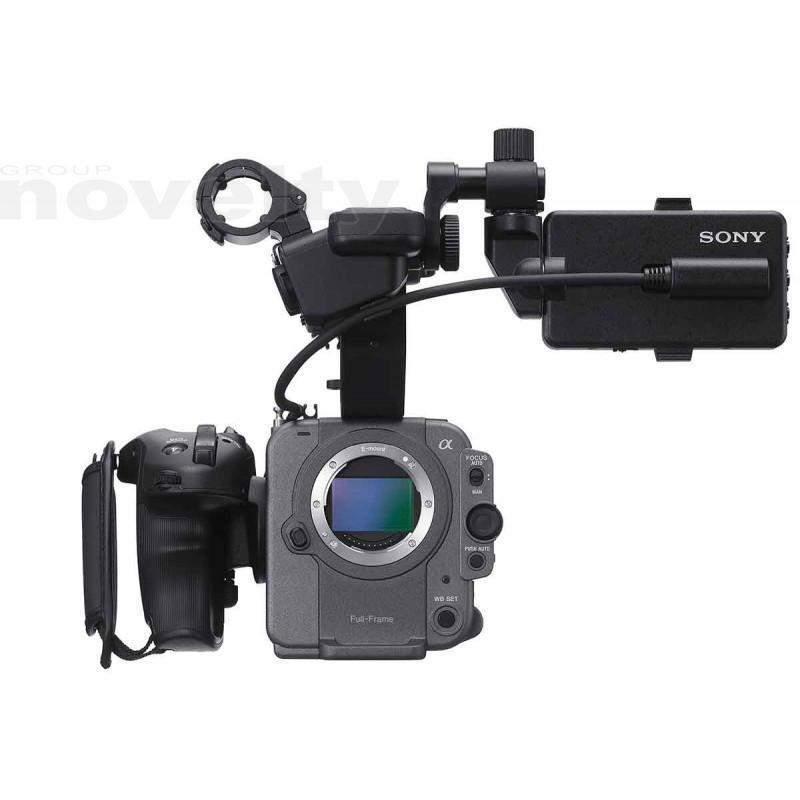

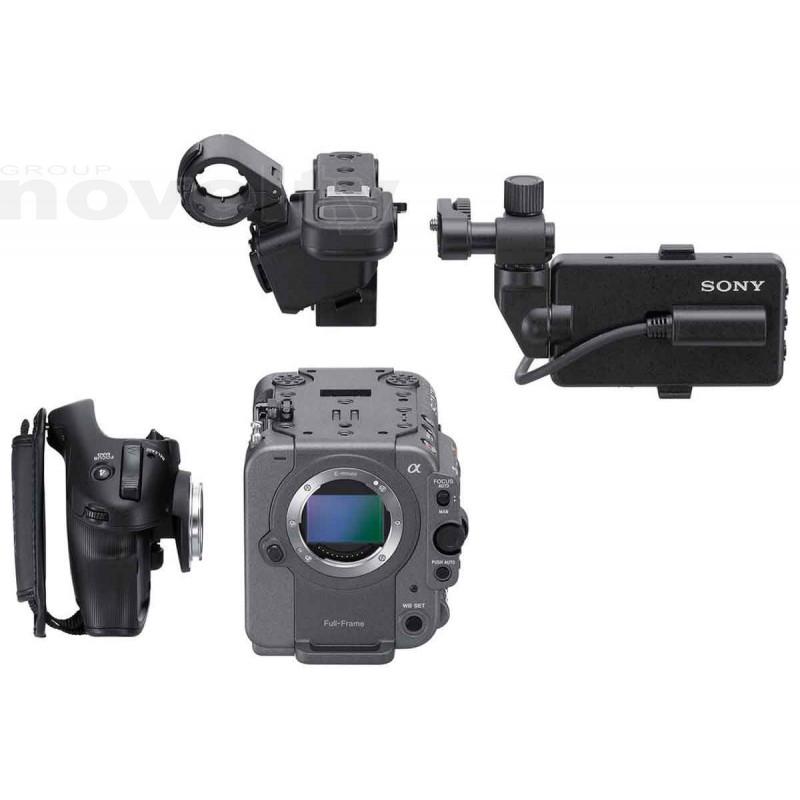

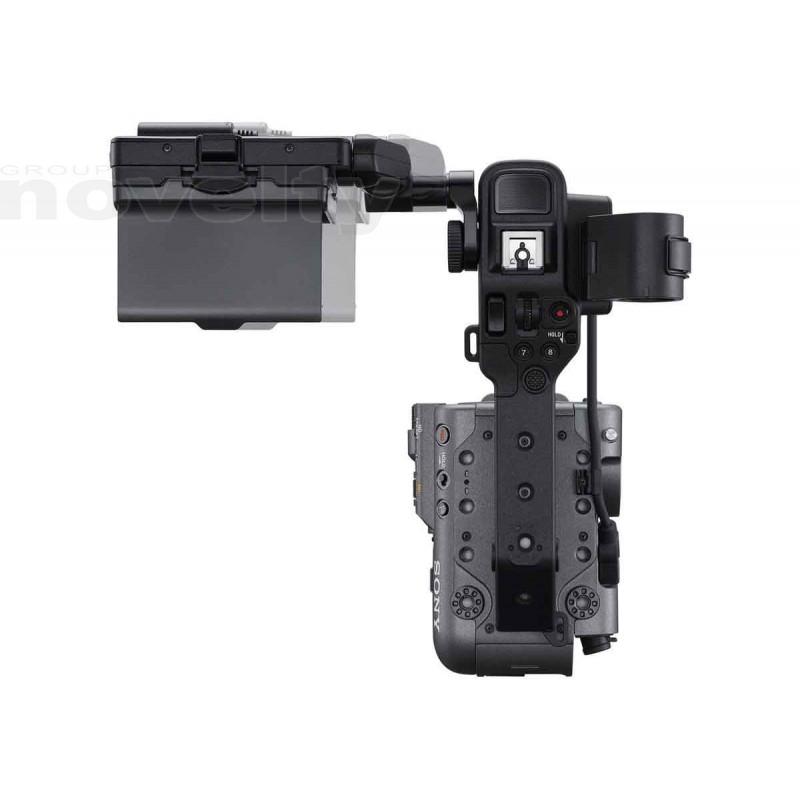

SONY FX6

Descriptions détaillées

Specifications

Size & Weight

• WEIGHT (MAIN UNIT ONLY) Approx 890g (1lb15oz)
• DIMENSIONS (W X H X D) (INCLUDING SUPPLIED ACCESSORIES) : Approx. 2.59kg(5lb11oz) (with Viewfinder, Grip Remote Control, BP-U35 battery, SEL24105G LENS, Lens Hood, Handle, MIC holder)
• DIMENSIONS (W X H X D) (BODY WITHOUT PROTRUSIONS) : 114 x 116 x 153 mm(4 1/2 x 4 5/8 x 6 1/8 inch) (body without protrusions)

Power

• POWER REQUIREMENTS : DC 19.5V
• POWER CONSUMPTION : Approx. 18.0 W (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device)
• BATTERY OPERATING TIME : Approx. 105min. with BP-U35 battery (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device), Approx. 215min. with BP-U70 battery (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device)

Operation

• OPERATING TEMPERATURE : 0°C to 40°C, 32°F to 104°F
• STORAGE TEMPERATURE : -20°C to +60°C, -4°F to +140°F

Recording Format(Video)

• XAVC INTRA :
  • XAVC-I DCI4K 23.98p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 24p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 59.94p mode:VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264, XAVC- I HD 23.98p mode:CBG, MAX bit rate 89Mbps, MPEG-4 AVC/H.264, XAVC-I HD 25p mode:CBG, MAX bit rate 112Mbps, MPEG-4 AVC/H.264, XAVC-I HD 29.97p mode:CBG, MAX bit rate 111 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 50p mode:CBG, MAX bit rate 223 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 59.94p mode:CBG, MAX bit rate 222 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 23.98p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 59.94p mode:VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264
• XAVC LONG :
  • XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode:VBR, MAX bit rate 35 Mbps, MPEG-4 H.264/AVC, XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode:VBR, MAX bit rate 50 Mbps, MPEG-4 H.264/AVC, XAVC-L QFHD 29.97p/25p/23.98p mode:VBR, MAX bit rate 100 Mbps, MPEG-4 H.264/AVC, XAVC-L QFHD 59.94p/50p mode:VBR, MAX bit rate 150 Mbps, MPEG-4 H.264/AVC

Recording Format (Audio)

• RECORDING FORMAT (AUDIO) : LPCM 24 bits, 48 kHz, 4 channels

Recording Frame Rate

• XAVC INTRA :
  • XAVC-I DCI4K mode:4096 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P, 24P, XAVC-I HD mode:1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P, XAVC-I QFHD mode:3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P
• XAVC LONG :
  • XAVC-L HD 35 mode:1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P, XAVC-L HD 50 mode:1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P, XAVC-L QFHD mode:3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P

Recording/Playback Time

• XAVC INTRA :
  • XAVC-I DCI4K/QFHD 23.98p When using CEA-G160T (160 GB):Approx. 74 minutes When using CEA-G80T (80 GB):Approx. 36 minutes, XAVC-I DCI4K/QFHD 25p When using CEA-G160T (160 GB):Approx. 71 minutes When using CEA-G80T (80 GB):Approx. 35 minutes, XAVC-I DCI4K/QFHD 29.97p When using CEA-G160T (160 GB):Approx. 60 minutes When using CEA-G80T (80 GB):Approx. 29 minutes, XAVC-I DCI4K/QFHD 50p When using CEA-G160T (160 GB):Approx. 36 minutes When using CEA-G80T (80 GB): Approx. 17 minutes, XAVC-I DCI4K/QFHD 59.94p When using CEA-G160T (160 GB):Approx. 30 minutes When using CEA-G80T (80 GB):Approx. 15 minutes, XAVC-I DCI4K 24p When using CEA-G160T (160 GB):Approx. 74 minutes When using CEA-G80T (80 GB):Approx. 36 minutes, XAVC-I HD 23.98p When using CEA-G160T (160 GB):Approx. 185 minutes When using CEA-G80T (80 GB):Approx. 91 minutes, XAVC-I HD 25p When using CEA-G160T (160 GB):Approx. 150 minutes When using CEA-G80T (80 GB):Approx. 74 minutes, XAVC-I HD 29.97p When using CEA-G160T (160 GB):Approx. 150 minutes When using CEA-G80T (80 GB):Approx. 74 minutes, XAVC-I HD 50p When using CEA-G160T (160 GB):Approx. 78 minutes When using CEA-G80T (80 GB):Approx. 38 minutes, XAVC-I HD 59.94p When using CEA-G160T (160 GB):Approx. 78 minutes When using CEA-G80T (80 GB):Approx. 38 minutes
• XAVC LONG :
  • XAVC-L HD 35 29.97p/25p/23.98p/59.94p/50p When using CEA-G160T (160 GB):Approx. 430 minutes When using CEA-G80T (80 GB):Approx. 210 minutes, XAVC-L HD 50 /29.97p/25p/23.98p/59.94p/50p When using CEA-G160T (160 GB):Approx. 320 minutes When using CEA-G80T (80 GB):Approx. 155 minutes, XAVC-L QFHD 29.97p/25p/23.98p When using CEA-G160T (160 GB):Approx. 170 minutes When using CEA-G80T (80 GB):Approx. 86 minutes, XAVC-L QFHD 59.94p/50p When using CEA-G160T (160 GB):Approx. 115 minutes When using CEA-G80T (80 GB):Approx. 57 minutes
• PROXY AUDIO : XAVC Proxy: AAC-LC, 128 kbps, 2 channels
• PROXY VIDEO : XAVC Proxy: AVC/H.264 High Profile 4:2:0 Long GOP, VBR 1920x1080, 9Mbps

Camera Section

• SENSOR TYPE : 35 mm full-frame, single-chip CMOS image sensor
• PIXELS : Approx. 12.9 megapixels(total), Approx. 10.2 megapixels(effective)
• BUILT-IN OPTICAL FILTERS : Clear, linear variable ND(1/4ND to 1/128ND)
• SENSITIVITY : ISO 800/12800 (Cine EI mode, D55 Light source)
• SHUTTER SPEED : 64F to 1/8000 sec

Slow & Quick Motion

• XAVC-I : 1 to 60 frames (59.94/50/29.97/25/24/23.98), 4096x2160
• XAVC-I/L : 3840 x 2160; 1 to 60, 100, 120 frames (59.94/50/29.97/25/23.98); 1920 x 1080; 1 to 60, 100, 120, 1501, 1801, 2001, 2401 frames (59.94/50/29.97/25/23.98)

White Balance

• WHITE BALANCE MODES : Preset, Memory A, Memory B (2000K- 15000K)/ATW

Exposure

• GAIN CONTROL : -3 to 30dB (every 1dB), AGC

Gamma

• GAMMA CURVE : SDR mode : S-Cinetone, Standard, Still, ITU709, HDR mode : HLG_Live, HLG_Natural

Latitude

• LATITUDE : 15+ stop

Interface

• TC INPUT/TC OUTPUT : BNC, TC IN/OUT Switchable
• AUDIO INPUT : Mic Reference: -30 to -80 dBu, XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
• SDI OUTPUT : SDI OUT: BNC, 12G-SDI, 6G-SDI, 3G-SDI(Level A/B)
• USB : USB Type-C(x1), Multi/Micro-B (x1)
• HEADPHONE OUTPUT : -16 dBu 16 Ω, Stereo mini jack (x1)
• SPEAKER OUTPUT : Monaural
• DC INPUT : DC jack
• REMOTE : Stereo mini-minijack (Φ2.5 mm)
• HDMI OUTPUT : Type A (x1)
• GRIP : Minijack(φ3.5mm / 4pin)

Monitoring

• LCD : 8.8 cm (3.5 type), Approx. 2.76M dots

Built-in Microphone

• BUILT-IN MICROPHONE : Omni-directional monoral electret condenser microphone (body) (x1), Stereo electret condenser microphone (handle) (x1)

Media

• MEDIA TYPE : CF express Type A / SD card (x2), Slot B can be used for saving configuration data.

Wi-Fi/NFC

• SUPPORTED FORMAT : IEEE 802.11 a/b/g/n/ac
• FREQUENCY BAND : 2.4 GHz bandwidth, 5.2/5.3/5.6/5.8 GHz bandwidth
• SECURITY : WEP/WPA-PSK/WPA2-PSK
• NFC : NFC Forum Type 3 Tag compliant
